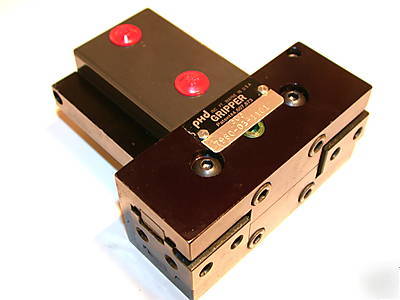

New phd 2 finger heavy-duty air gripper 7960-03-11011
NEW PHD 2 FINGER HEAVY-DUTY AIR GRIPPER 7960-03-11011
The jaw travel is 5/8""and the dimensions are 4" wide x 4 1/4" high x 1 3/4" thick.
Double-acting for either internal or external gripping applications.
Oval piston construction provides high grip force to weight ratio.
Close tolerance jaw mechanism minimizes jaw play.
Internal jaw mechanism is constructed of hardened steel components and enclosed for long life.
GRIP REPEATABILITY - Within 0.002 [ 0.05 mm] of original position
Advantages: Heavy duty construction, pneumatic service, high grip force, spring assist, switches.
http://litstore.phdinc.com/pdf.asp?filename=Classic06.pdf - page 67
This assembly can be used many ways including a pick and place system.
