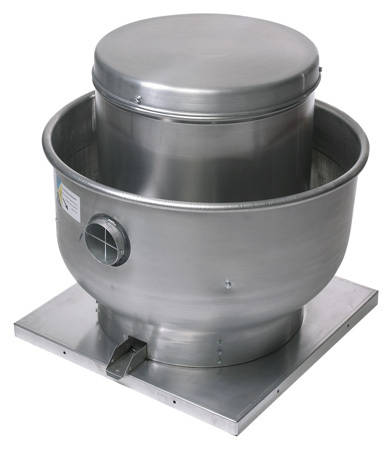

Fantech 5BDU16FB belt drive upblast roof/wall vent
FANTECH 5BDU16FB Centrifugal Belt Drive Upblast Roof and Wall Ventilators Single-Phase 115/230V
This listing is for a 16-1/2" Wheel Diameter 1 HP. New Unit
Permanently lubricated ball bearings.
Open dripproof motors are factory wired with 6' pigtail; Wired 115V, and can be re-wired at motor for 230VAC Variable pitch motor sheaves allows for 25% speed/CFM reduction Full range of additional sizes, HP and voltages available. Please contact us.
Mfg. # Wheel Diam. HP RPM Max. BHP Sones @ 0.250" SP CFM Air Delivery @ RPM Shown, 0.250" SP CFM Air Delivery @ RPM Shown, 0.500" SP CFM Air Delivery @ RPM Shown, 0.750" SP CFM Air Delivery @ RPM Shown, 1.000" SP CFM Air Delivery @ RPM Shown, 1.250" SP Wt. Lbs. OEM Replacement Motor 5BDU16FB 16-1/2" 1 1400 1.02 21.0 3,478 3,282 3,068 2,(***) 111 1379315809X
For more information from Emerson please click here http://www.fantechselect.net/
Pick up is available for all of our items Please contact us for more
