Amprobe dm-iii power quality recorder

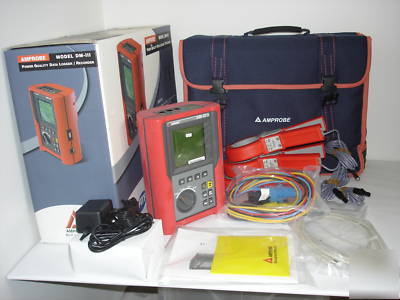

PICTURES ARE OF THE ACTUAL UNIT AND ACCESSORIES BEING SOLD.

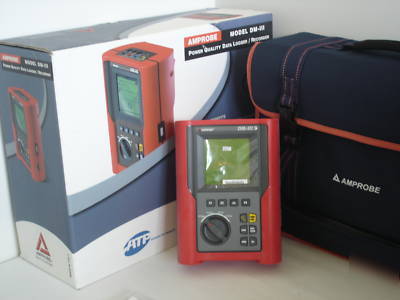

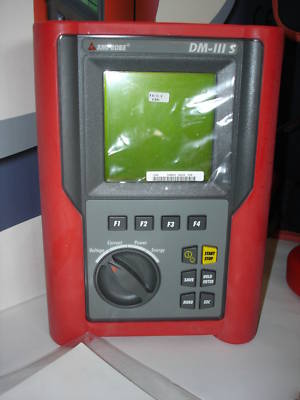

Amprobe DM-III Power Quality Recorder
Amprobe s full-featured Three-Phase Power Quality Recorder provides the essential functions and capabilities required to operate accurately and effectively in today s demanding electrical environments.

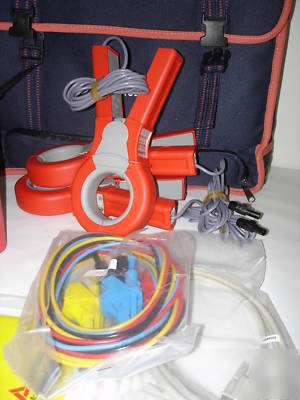

* Comes as a complete kit, CT and PC software are included with product
* Detects and records voltage anomalies Sags and Surges
* Records up to 64 parameters (single or three phase)
* Selectable fundamental frequency of 50 or 60Hz
CATIII 600V Phase to Phase, CATIII 300V Phase to Ground, EN 61010-1+A2(1996)
5 - 1000A (expandable to 3000A with optional CTs) (0.5% Rdg + 2 LSD)
Working (W), Reactive (VAR) and Apparent (VA) (1.0% Rdg + 2 LSD)
Working (kWh), Reactive (VARh) and Apparent (VAh) (1.0% Rdg + 2 LSD)
THD, DC and individual up to 49th (0.5% Rdg + 2 LSD) @ DC to 25 harmonics**
57 to 63.6Hz at 60Hz fundamental, 47 to 53Hz at 50Hz fundamental (1.0% Rdg + 2 LSD)
Measures Absorbed and Generated Power and Energy
* Items must be returned within seven (7) days after receiving it.
