Marbel laminate pinch nip roller kitchen cabinet PR6
* Marbel pinch nip roller machine..

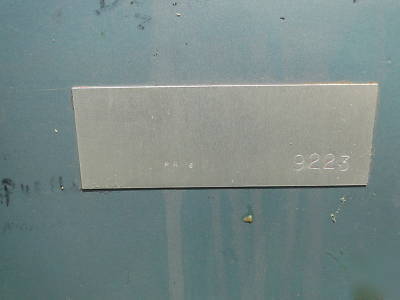

* Model PR6-61 ? can only read serial number on mfg tag.
* its 70 inch wide and 66 inch inbetween frames so should be pr6-61.
* 120 volt 1 phase perfect for any shop.
* Machine is in excellent working order runs great see video!.

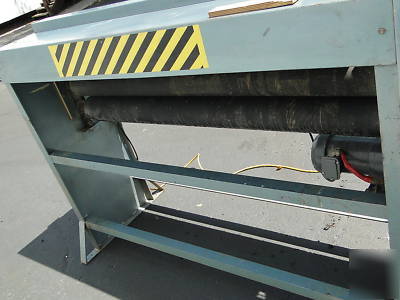

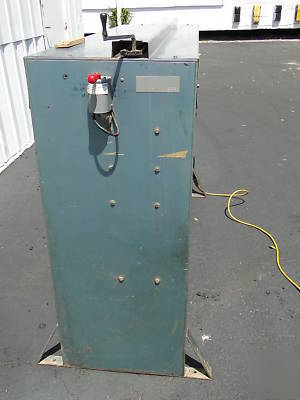

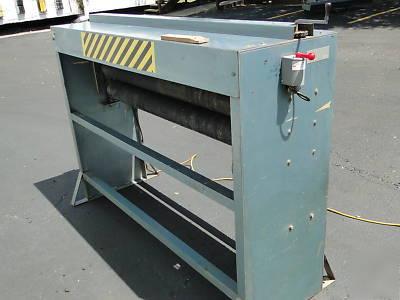

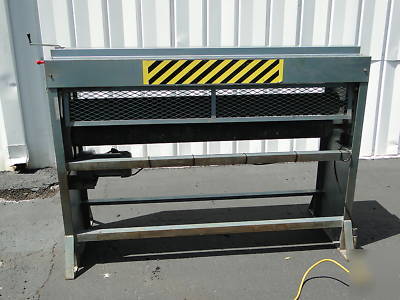

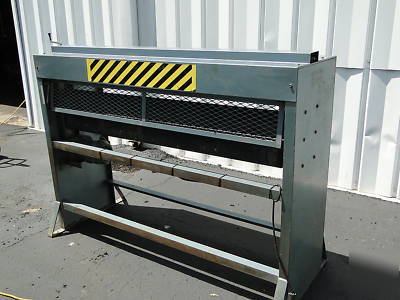

* everthing is shown in the photos so please look at them.
THE following is what the mfg states about these machines
You can find all info as this super product at
A 4x8 panel is rolled in 22 seconds instead of the customary 7-8 minutes experienced in hand rolling
No quality control problems with callbacks due to poor, uneven laminating pressure - a superior, more uniform bond.
Cost justified with a value price: Often the labor and material savings of one job or the avoidance of one
delamination / product rework / warranty call can pay for the machine.
1500 lbs. of line pressure is more than adequate for normal laminating operations
Note that the top roll in each size is 1-1/2" longer on one end than the bottom roll to
accommodate a raised edge: e.g. the 51-1/2" size has a top roller that is 53" long. This will allow a standard depth clearance of up to 2" of build up on that end(see inset photo - front).
27 FPM roll speed, standard 3" opening for material thickness, top of bottom roll is 33 1/4" from floor (pass height). Adjust this measurement if you add casters to predrilled machine pads
Standard roll material is 60 durometer neoprene with matte' finish (other coverings and/or
durometers quoted on request).
Since you set your top roller to a specific opening for a particular laminating operation, you don't experience fractured laminate on the leading edge when it overhangs the substrate which may sometimes occur while forcing open pneumatically
operated rollers. With our opening mechanism you avoid having to compensate for this problem by using less pressure than you want in a pneumatic system or requiring an employee to remember to increase the pressure once the work has been fed. In addition, our crank mechanism remains consistent over its long operating life while one of the cylinders in a pneumatic system may eventually have a different output pressure which would result in uneven surface pressure.
VERSATILITY: Mar-Bel pinch rollers have been used for putting clear on aerial overlays, foil on styrofoam
pontoons, the manufacture of computer flooring, boat manufacturing and a host of other applications in addition to the cabinetmaking and casegood / store fixture industries.
ITEM COMES AS SHOWN IN PICTURE. And there is never anything included that is not shown or stated.
You are welcome and encouraged to view items in person.
Most items are quaranted if not then the following applies.
All items are sold "AS - IS, Where - IS" and with no refunds or returns. Items are described to the best of our knowledge, however, We at Fabmasterd Machinery and/or the Seller make no guarantees regarding accuracy, errors or omissions in item descriptions and make no warranty, express or implied as to the nature, quality, value or condition of any item.
