New 30 hp rotary phase converter panel only cnc milling
Standard Features on ALL American Rotary
30 HP Rotary Phase Converter Panels
1 Made in USA... Custom made components from the USA
2 Built-in Starter... Money saving feature, no external motor starter needed
3 Precision Voltage Balance... can run even the smallest motors
4 Designed for T-frame motors (30 HP motor not included)... 1800-3600 RPM
5 Gold Chromate BusBars... for superior electrical connections & anticorrosion
6 Easy BusBar Connections... Great for large wires & multiple connections
7 Start/Stop switch w/ indicator ON light... & raised emergency stop switch
8 Easy Installation... Removable backplate & plated double bus bar connections
9 Isolation Feet for idler (optional)... extends bearing life & minimizes noise
More Features and Detailed Information Below or Click Here

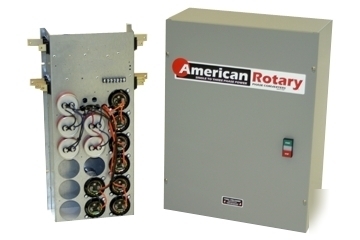

*pictures in this ad are used as a general representation of the construction of the unit.
Works with any T-Frame 1800 or 3600 rpm motor
Simple straight forward connections
Start Stop Switch w/Indicator ON light
Additional Resources & Information
10 Things to Consider when Phase Converter Shopping
View All Types of Phase Converters in our Store
Transformers to Change Voltage
Click on the icon to hear this panel run a 30 HP Baldor Motor
This 30 HP Phase Converter can Start & Run the following motor loads:
Extreme Load (Heavy Flywheel, or motors using service factor)
Total Load (Largest motor to start must meet Medium, Hard or Extreme)
Max Single Motor Load Start Capability
Double the size of the phase converter for hard & frequent starting loads
Use 50% of the converter's full load current to maintain a 5% voltage balance
Size the converter for the single largest starting load
Always at least round up to the nearest converter size; even for light loads
For CNC applications, double the converter hp and use at least a 7.5 hp Converter.
Please Call Us Toll Free if you want to make sure you are choosing the correct size phase converter. 24/7 Toll Free 1-(***)-743-6832
Bring in Single Phase Power and Run Three Phase lines to the idler and 3-phase equipment.
Replace Cover, turn on power and Start Converter. You now have 3-phase Power!
NOTE: load and idler are wired into control panel
Opterating Reliability (hours)
Min. Wire Breaker to Converter
** Phase Converter can be run on 50Hz. Consult Factory.
9 lead motors: connect (4,5,6) windings T1=(1,7) T2=(2,8) T3=(3,9)
12 lead motors : windings T1= (1,6,7,12) T2=(2,4,8,10) T3=(3,5,9,11)
All American Rotary Phase Converters are proudly made in the USA and with American made components. Many components are custom made in order to meet our specifications for continuous duty phase conversion.
DIN rail for Automatic Features (unattended equipment such as pumps and compressors)
If you need your converter to start when a pump calls for water, or a compressor calls for air, our DIN rail mounts allow timed functions to be seamlessly added for automatic or unattended operation of your Rotary Phase Converter.
Save money with GENTEC American Rotary's built-in motor starter and automatic controls. The converter will start automatically at the touch of the "START" button and is conveniently pre-wired for remote start and time delay. Shown: cut-a-way of the back of one of our Rotary Phase Converters shows how the starter ties into the bus bars used for power connections.
Push Button Start/Stop Switch with ON indicator Lamp
Easy light touch ON and a Safety Raised OFF button for simple control of your 3-phase power. The light indicates the converter is running and it's brightness indicates the amount of load.
Every phase converter goes through a series of bench tests to make sure it is within spec. We voltage balance our converters so that voltage sensitive equipment and significantly smaller loads will not see unbalanced currents. Among the tests done are line to line voltage balance, power-factor, phase shift, and synchronous time constant (start time)
A three wire latching circuit assures that the converter will turn off and not restart when power is restored. This is controlled by the momentary pushbutton switch shown in the photo to the right. This protects both the converter and the equipment hooked up to the converter.
We put extra effort into making sure our components can withstand the demands of continuous phase conversion. This often means thicker materials, tighter tolerances, and better quality control. The capacitor cores in the picture are being wound with a film that makes their voltage rating higher than normal because phase converters can often see higher voltages during startup.
The picture to the right is a Motor Start Capacitor. They determine the inrush current when starting a rotary phase converter. The combination of our rotary phase converter control panel with any T-frame, 3-phase motor produces an economical rotary phase converter.
Connecting large gauge wires into a terminal block can be a daunting task, even for the best of electricians. This is why we use the Drive Industries accepted method of BusBar connections. Our busbars take any size wire, and any number of wires. They are the best way to make a gas tight electrical connection that will last.
When your equipment is out in the elements, a phase converter may also need to be mounted outside. We offer our same proven rugged control panel designs in NEMA 3R enclosures.
American Rotary has been in business since 1991. We continue to lead the Industry in rugged, reliable Phase Converters. We also lead the field in innovations such as Soft Start, Bus Bar Connection, Voltage Balance and Integrated Starters.
Call 1-(***)-743-6832 for Sales, Tech Support, or for Directions
Only American Rotary offers this much value in a phase converter.
