Boeckeler via-30 video crossline generator

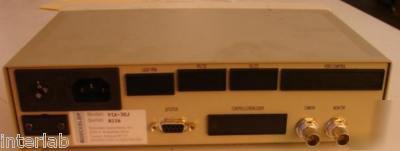

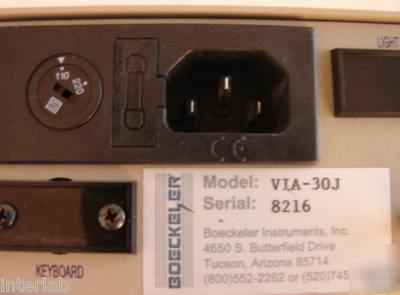

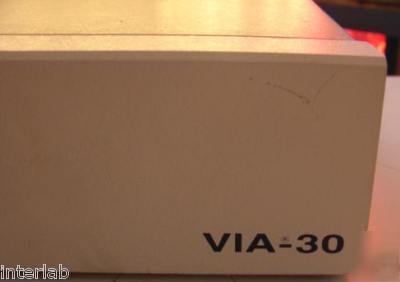

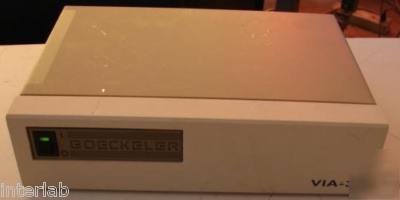

Good Condition, Working, Boeckeler VIA-30 Video Crossline Generator Serial Number
Shown at left is a combination of line patterns and intersections available in the VIA-30J and the VIA-170.
The VIA-30J provides three types of positionable lines - vertical, horizontal or crossed lines. Each line may be displayed in one of ten different line patterns: solid fine, medium or bold; dotted fine or bold; dashed fine, medium or bold; scaled fine or bold. An intersection option allows users to select an intersection which is closed or open.
A centering option automatically places an intersection in the center of the screen or leaves positioning up to the operator. On-screen menu options let users clear the screen entirely or erase lines one at a time. The VIA-30 is available with a joystick controller only.
http:// /ftproot/100/bck/via30-UG.pdf
