New digital sound noise level decibel db meter 30 130
NEW DIGITAL SOUND NOISE LEVEL DECIBEL dB METER 30 130
This Multi-functional Digital Sound/Noise Level Meter w/ RS-232 Interface is designed to meet the measurement requirement of noise engineers, noise quality control and health prevention in various environments. Such as noise measurement in factory, office, traffic road, family and all other noise measurement applications.
a. International Electrician Committee Standard: IEC 651 TYPE 2
b. US National Standard: ANSI 1.4 TYPE 2
* With Alarm Set And Alarm Output
Lp: Current Sound Pressure Level
Leq: Equivalent Continuous A Sound Pressure Level, i.e. Arithmetically Mean Value in A Period of time Set.
LN: Statistic Analysis, i.e. What Percent of All Measurement Values are Larger than or Equal to the Alarm Value Set by the User. For Setting The Alarm Value.
* A / C / Flat Frequency Weighting
a. With 'A' Weighting Selected , The Frequency Response of The Meter Is Similar to The Response of The Human Ear. 'A' Weighting Is Commonly Used for Environmental or Hearing Conservation Programs Such As OSHA Regulatory Testing And Noise Ordinance Law.
b. 'C' Weighting Is A Much Flatter Response And Is Suitable for The Sound Level Analysis of Machines, Engines,etc.
* Auto Range Selection And Digital Display with No Guessing Errors
* Manual or Automatic Shut Down. The Tester Can Be Switched Off by Pressing The Power Key at Any Time. On The Other Hand, The Tester Can Be Set to Auto Power Off Between 1 to 9 Minutes or disable Auto Power Off
* Can Connect to Computer for Statistic, Printing And Analyzing by The Optional Cable And The Software For RS232C Interface
* AC and DC Analogy Signal Output are Available connecting to Frequency Analyzer Level Recorder, FFT Analyzer And Graphic Recorder etc. for Data Statistical Analysis
14mm (0.55") LCD with backlight
Built-in Calibration Signals
LED and Optional Relay Contact (NC)
236 x 63 x 26 (mm)/ 9.3" x 2.5" x 1.0"
1/2" Electret Condenser Type
Parameters Measured: Lp, Lmax, Leq, LN
30-130dB (A), 35-130dB (C), 40-130dB (F)
30-130dB (10s, 1min, 5min, 10min, 15min, 30min, 1hour, 8hours, 24hours)

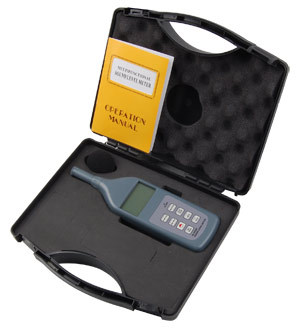

* 1x Black Plastic Carrying Case
Please kindly know that the RS232C cable is not included. Thank you.
