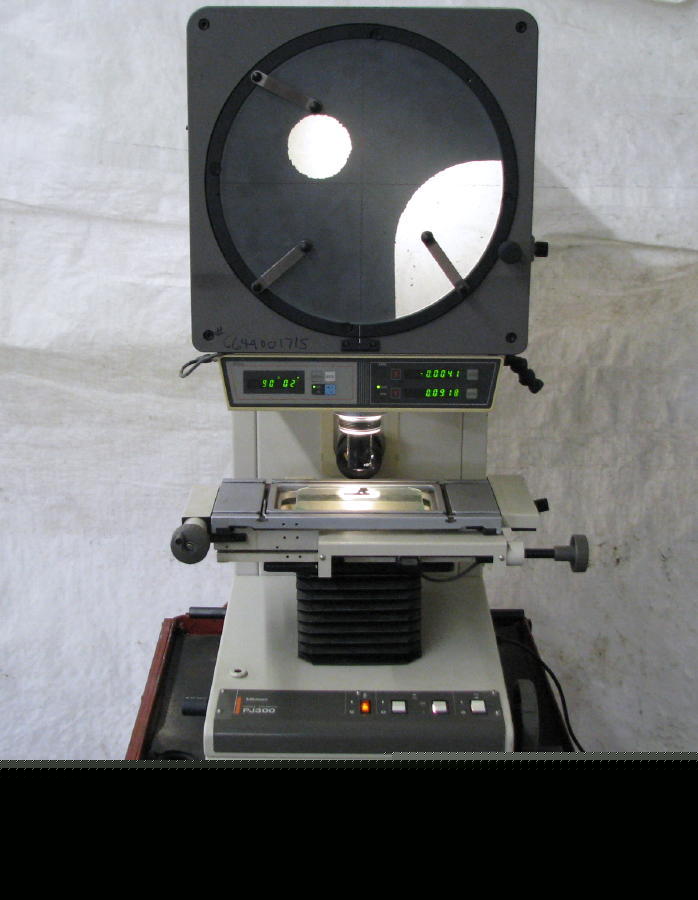

Mitutoyo model PJ300 bench top optical comparator
Mitutoyo Model PJ300 Bench Top Optical Comparator
Mitutoyo Bench Top Optical Comparator
Size of Glass Viewing Area: 3-3/4" x 7-3/4"
Overall Size of Stage: 6" x 13-1/4"
Longitudinal Stage Travel: 6.2"
Vertical Adjustment of Stage: 4-1/4"
Resolution of X-Y DRO: .0001"/.001mm
Resolution of Angular DRO: +/- 370 Deg., 1' or 0.01 Deg.
Overall Dimensions: 21" x 28"
Built-in 2-Axis Digital Readout for Stage Travels
Zero Setting, ABS/INC Mode Selection, In/mm
Built-in Digital Angular Protractor Display
Built-in Surface Illumination
Approximate Net Weight: 255 Lbs.
Additional Weight: 105 lbs.
