IT3800 barcode scanner 42204061-03 ps/2 %
IT3800 BARCODE SCANNER 42204061-03 PS/2 %

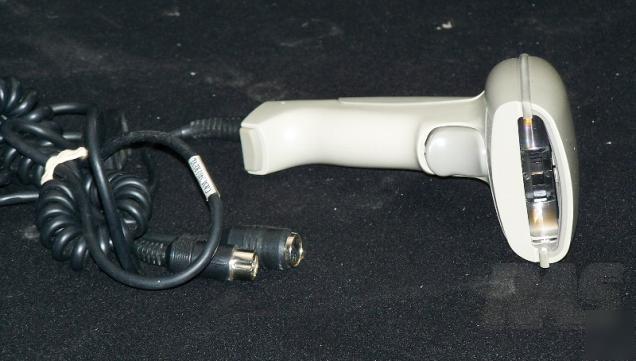

This Welch Allyn IT3800 scanner is in fair to good condition, the cord is 42204061-03 PS/2 Keyboard Adapter.
Bright, Sharp and Focused Aiming Line
Powerful, Flexible Architecture
Real World Reading Performance
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
Reading Distance: From 1 in. (2.5 cm) to 8 in. (20.3 cm) on medium density codes
Reading Width: 5 in. (12.7 cm) code width at 7 in. (17.8 cm) distance
Resolution: 3 mil. at 3.5 in. (8.8 cm) distance
Scan Rate: Programmable to 270 scans per second
Decode Rate: 270 decodes per second
Mechanical Shock: Operational after 50 drops from 5 ft. (1.53 m) to concrete
Ambient Illumination: 0 - 70,000 lux
MTBF: per MIL-HDBK-217F Ground Benign exceeds 100,000 hours
Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, China Postal Code, RSS. PDF417 in 3800 PDF-12 model.
All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, Apple ADB, USB, TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and includes (HHLC) non decoded laser compatible output. IBM 4683/93 and OCIA retail terminals in 3800 LR-11 model. True RS-232 in 3800LR-13 model.
