Smtw centerless grinder, model M1050A

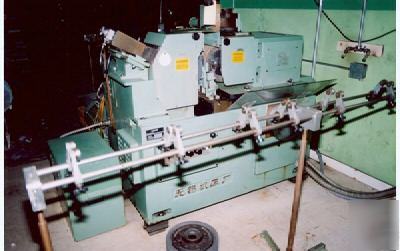

SMTW Centerless Grinder, Model M1050A, S/N 93-1017, new 1993
Infeed grinding capacity 0.28 -2 diameter
Through feed grinding capacity 0.2 -2 diameter
Grinding wheel size 15.7 x 6 x 8
Regulating wheel size 12 x 6 x 5
Grinding wheel speed 1,668 RPM
Infinitely variable regulating wheel speed 20-200 RPM
Regulating wheel swivel in vertical plane -2 , + 5
Regulating wheel swivel in horizontal plane -1 , + 3
Feed per division of handwheel 0.0001
Feed per turn of handwheel 0.016
Travel of infeed grinding 0.13
Total rapid travel on infeed 0.07 -0.13
Feed per division of dressing dial 0.0005
Height from connected line between (2) wheel axes
Distance between connected line between (2)
wheel axes to bed bottom 39.37
Hydraulically actuated regulating and work wheel dressers
Automatic cycling including plunge infeed and sparkout delay
Automatic parts ejector and positive stop
Long bar attachment and through feed work rest holder
(2) Roller stock stands and (1) V-shaped stock stand
(4) Extra wheels and (2) wheel mounts
14 H.P. grinding wheel drive motor
Free-standing electrical control cabinet
Machine is wired for 3/60/220 volt operation
An optional 1-year breakdown warranty may be available for only 4% of the purchase price. Call for details.
Approximate weight: 7,000 lbs.
