Norgren EC63D size 50 pneumatic clamp 1/4" npt 25MM arm

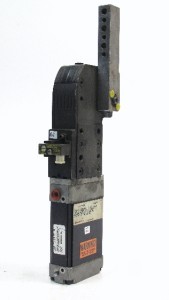

Norgren EC63D Size 50 Pneumatic Clamp 1/4" NPT 25mm Arm
Part # EC63D-A-1-X52M-180A-L-90-2-0
USED - condition rating (8 out of 10)
(EC63D) - Clamp Model: Size 50 Octagonal Shaft Version
(A) - Cylinder Type: Standard Pneumatic Cylinder
(1) - Port Type: 1/4" NPT Thead
(X) - Model Designator: EC63D/66D Style 25 mm Wide Arms
(M) - Arm Type: Machined With Dowel And Bolt Holes
(180A) - Arm Mount Position: 180 Degrees
(L) - Shaft Location: Left Side
(90) - Open Angle in Degree Of Rotation: 90 Degree
(2) - Sensing: DC 5 Pin Micro Connector
http://store.norgren.com/resources/sku/FullViewUS/0000008001/8443.pdf
