Miller msw-41T portable spot welder with timer

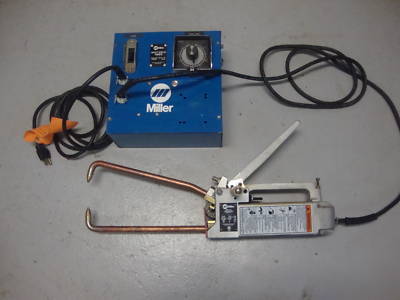

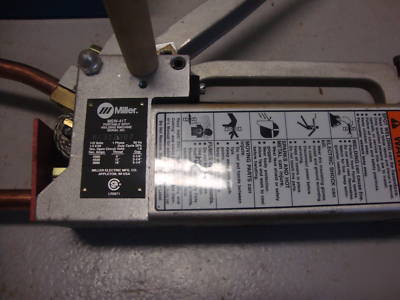

MSW-41 Air Cooled Spot Welder w/Timer
Used Miller model MSW-41 (p/n 901345) Air Cooled Spot Welder with Timer Unit. Very good cosmetic condition! Excellent working condition! I used this for a project and have no future use for it so I am selling it to make some room.
The unit is a lightweight, air-cooled, portable, easy to operate, and provides a quick and effective means for spot welding mild, galvanized or stainless materials.
MSW-41 model (p/n KC312387) weld up to 1/8 in (3.2 mm) total material thickness or two pieces of 20 gauge (1.8 mm) galvanized metal. The hand lever locks tongs firmly on material, ensuring positive, accurate fit-up. It accommodates a wide variety of tongs and tips. Comes with new 12 throat tongs and tips. Used very little. Quick and easy adjustment for material thickness. Reversible for left- or right-hand operation. Several tongs and tips are available for this unit.

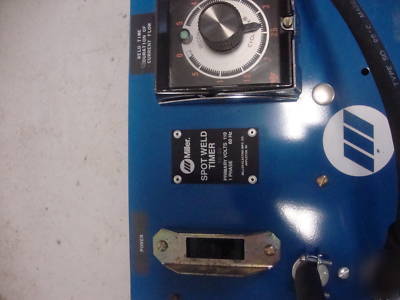

Includes timer box (p/n KD-04) with a 0 to 5 second weld timer and power on/off switch, and come with a 10ft. (3m) input power cord and 10ft. (3m) interconnecting cord.
* Resistance Spot Welding (RSW)
Output Power Range (calibrated with standard-type tongs)
* MSW: 6 in (152 mm) 5,550 A (optional)
* MSW: 12 in (305 mm) 4,500 A (included)
* MSW: 18 in (457 mm) 3,600 A (optional)
* MSW : 1.5 kVA at 50 % Duty Cycle
