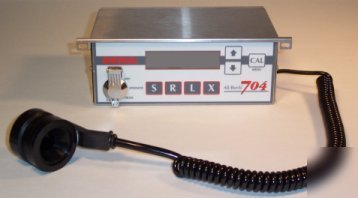

Berg all-bottle 704 liquor pouring system, control
Free-pouring style liquor dispensers provide for an unlimited number of brands. Reads up to seven different price codes using either standard or Fast-Pour pourers.
Offers four pre-set portion sizes - adjustable from 1/8 to 10 ounces for each price code.
Get pour counts on demand with backlit LED display or optional serial printer.
Optional ECR (Parallel) register interface will not permit a pour if ECR cable is disconnected.(not included)
Optional POS (Serial) sales terminal interface assures that all pouring activity is recorded at the sales terminal. Visit the dealer area to see which sales terminals are supported and the limitations of the interface.(not included)
Permits pour-delay/restart function - Restart a pour by keeping a bottle inverted for more than 2 seconds after initial pour.
The Sales Terminal Interface is a direct communication link between Berg Company liquor dispensers and sales terminals. Sales terminals are either Point of Sale (POS) terminals or Electronic Cash Registers (ECR). The terminals can be set to capture sales automatically as each drink is poured.
Sales terminal companies that support Berg LDS do so via a serial data interface with two way communication. They employ one or more of three main methods to deal with the data that is transferred.
* Direct Ring-Up - Pour requests sent from the Berg LDS to the sales terminal are automatically rung up as they are received at the sales terminal s serial port. The pour occurs only after the sales terminal rings up the sale and acknowledges the request.
* Pre-Checking - Pour requests sent from the Berg LDS to the sales terminal are checked against a list of what has already been rung up (pre-checked). The pour occurs only if the item is on the list and only after the sales terminal acknowledges the request.
* File Posting - Pour requests sent from the Berg LDS to the sales terminal are saved to a file by the sales terminal. They are not automatically rung up, nor is there any requirement that they be pre-checked. Later, there is a report of the differences between that file and what was actually rung up. The pour occurs only after the sales terminal acknowledges the request.
* There are wireless options for serial interfacing. Call Berg Company for more information.
Go to the below link for a full brochure on this product.
http:// /704.html
This unit comes with 2 berg 704 units ($2500.00 each), ~75-80 bottle pour tops for the berg machines ($25.00 each), and Seal Tape ($104.00) for each box. This is a new value of ~7000.00. All available for about 3/4 the cost. These units were used for about a month but we have too busy of a bar and too many registers to use efficiently. Please contact me if there are any other questions you may have. Thank you for looking.
