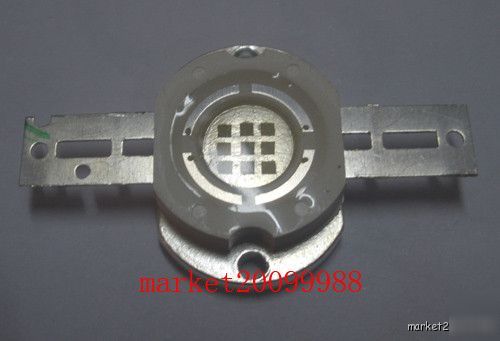

1PCS 10WATT high power blue 600LM led + drive 85-265V
1PCS 10WATT high power BLUE 600LM LED + DRIVE 85-265V
Specification for 10W BLUE LED:
Peak Wave Length (nm) : 467~470
Intensity Luminous (Iv): 450 ~ 600LM
Operating Temperature: -30 ~ 110 C
Storage Temperature: -40 ~ 120 C
Manual Soldering Time at 260 C: < 5 Sec
DC Forward Voltage (VF): 10.5 ~ 11.0 Vdc
DC Forward Current (IF): 1000mA ~ 1500mA
Operating Temperature: -20~80 deg
Storage Temperature: -20~80 deg
Function: Open circuit, Short circuit and Over loading
Application: Fit for 10 Watt Energy Save / High Power LED in Any Colors.
(Note: the pink wire is positive and the black wire is negative, both can attach to the led. The two white wires connect to the power supply.)
Our 10w leds need cooling board to avoid the extra heat. Pls use the 10w led as the product specifications , If improper operation caused led burning out, we won't be responsible for it .
