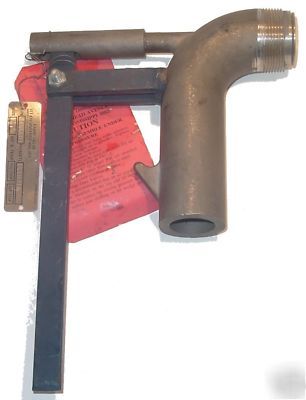

1-1/2" fabri #151 stainless sampling valve
1-1/2" Fabri Fig. 151 316 Stainless Steel Sampling Valve
Fabri-Valve Sampling Valves are designed for installation in stock lines or tanks where occasional sampling of the contents is necessary. The valve is threaded for installation in a half coupling that has been welded into the line or tank. This allows
the valve face to be even with the interior wall of the pipe or vessel, thus eliminating any dead space for buildup of material. A sharp metal to metal seat severs fibrous material, which may be suspended in the liquid. A spring located around the valve stem holds the valve in the closed position. The handle is pulled to compress the spring and open the valve. Release of the handle closes the valve. Standard construction is a cast stainless steel body with a carbon steel handle.
Information from the tag on this valve:
* WP & Temp: 150 CWP 32 - 150 F
