Ismatec bvp-z gear pump w/ P140 pump head

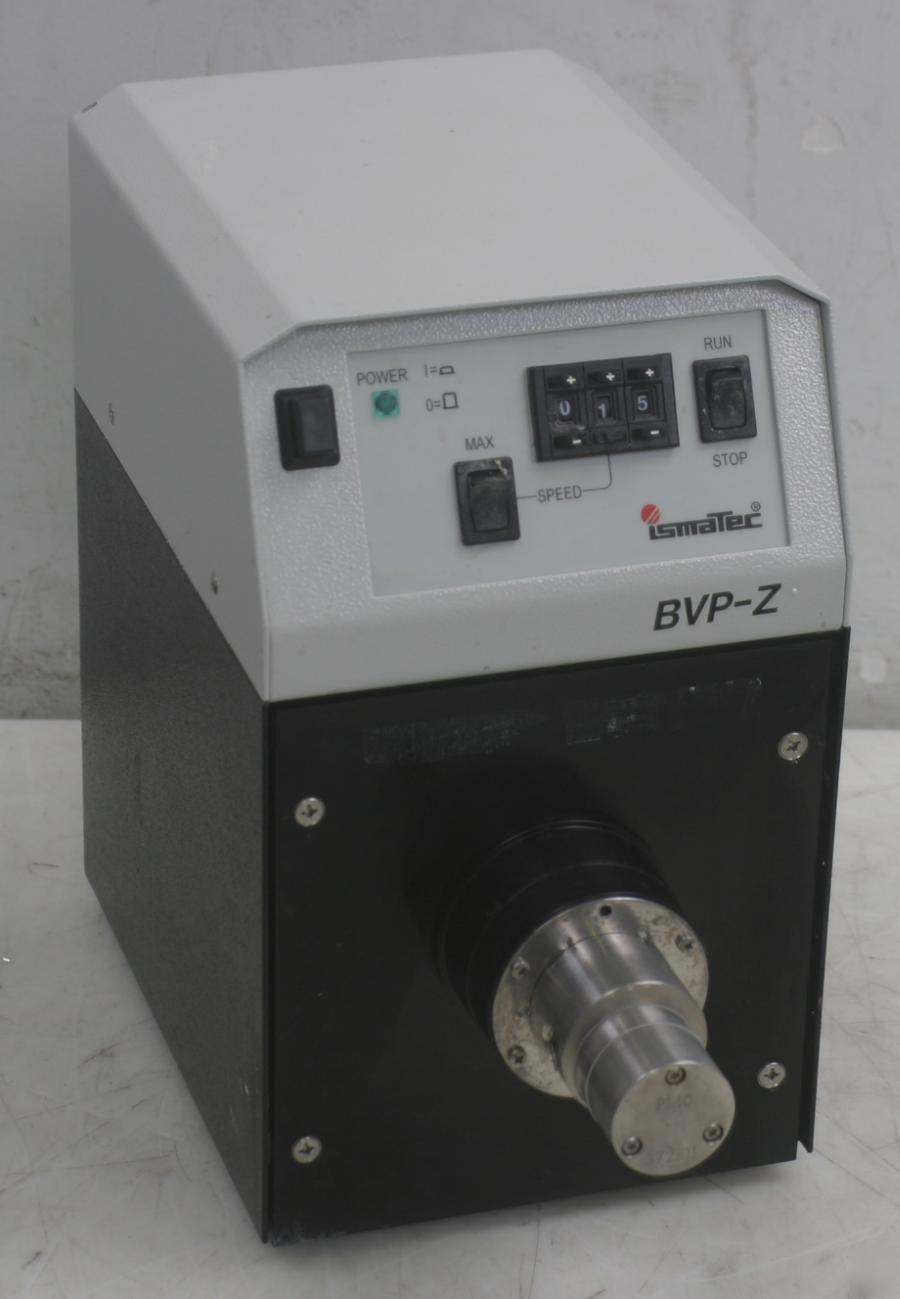

Ismatec BVP-Z Gear Pump w/ P140 Pump Head
Used but tested, working, Guaranteed not DOA. Every thing is working on this pump. The speed selector switch buttons for the left most number do not change the speed, but, using the point of a pen, screw driver, etc, you can easily change the number and the drive responds with the corresponding higher or lower operating speed. The middle and right plus/minus buttons work fine. Pump can also be controlled remotely. This pump retails for $2045 from Cole Parmer.
* Flow rates 1 7241 ml/min (depending on mounted pump-head)
* Motor speed 60 6000 rpm, adjustable in 0.1% steps
* Speed setting 3-digit potentiometer
* Speed control Closed loop control for pressure independent speed
* Analog input Speed control (0 5 or 0 10V / 0-20 or 4 20mA)
* Analog output Speed monitoring (0 10VDC or 0 12 kHz)
* Digital input (TTL level) Start/Stop
* Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
* Power supply 115/230VAC; 50/60Hz
