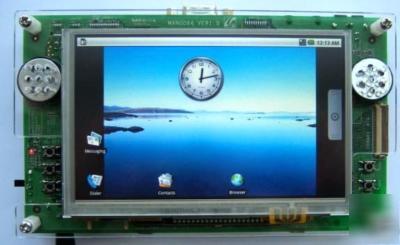

ARM11 S3C6410 android embedded development kit deluxe
Below is MANGO64 / S3C6410 (ARM11) Hardware Description. (MANGO64 HARDWARE GUIDE)
For more information, please visit http://www.embeddedsource.net/ .
* Samsung S3C6410X / ARM1176JZF-S 667MHz Application Processor
* 5"(or 4.8") 800 x 480 TFT LCD with Touch Screen Interface
* 128MB Mobile DDR / 256MB NAND Flash / 4MB NOR Flash
* 3-Axis Acceleration Sensor
* SMSC LAN9220 10/100Mbps Ethernet Controller
* Wolfson WM8960 Audio Codec with 1W Stereo Speaker Amplifier
* Wi2Wi WiFi/BT Combo Module (included in MANGO64 DELUXE)
* GPS Module (included in MANGO64 DELUXE)
* Port0: WiFi(Wi2Wi) or Expansion Connector
* Port2: Expansion Connector
* Port0: Expansion Connector
* Port1: Expansion Connector shared with SD/MMC Port2
* Port0: GPS or Expansion Connector
* Port1: Standard 9-Pin Serial Connector
* Port3: Bluetooth or Expansion Connector
* Camera Expansion Port: CCIR601/656 Standard Camera Interface
* 4 x General Purpose Keys
* 1 x Slide Power Switch
* 2 x LEDs connected to GPIO ports
* JTAG: Standard 20-Pin JTAG Port
* Charger IC for Single-Cell Li-Ion Battery
* Li-Ion Battery Connector
* IrDA, Camera, I2S, SPI0/SPI1, SDIO0/SDIO2, EBI, UART, LCD, ATA HDD
* (1) Mango64 Deluxe Board NEW
* (1) SDHC 4GB Card with Linux 2.6.29 Image ported/pre-installed
* (1) Resource CD - OS images, Linux kernel source, Datasheets, etc.
* (1) AC Adapter - 5V/2A DC output
* (1) 6" USB cable (connA-to-connB)
* (1) 6" DB9 serial cable (male-to-female)
* (1) 6" Ethernet cross-over LAN cable CAT 5e
