10X microswitches 15A with roller levers micro switch
10x Microswitches 15A With Roller Levers Micro Switch

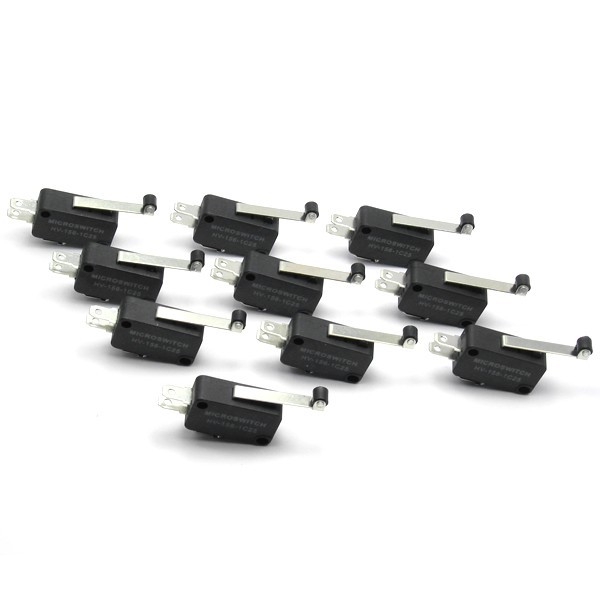

10 New 15A microswitch with roller lever attached.
* Withstand Voltage: AC1,0000V 1 Minute
* Insulation Resistance: 100M O DC500V
* Contact Resistance: <100mO
* Soldering Temperature: 250 C Max 3 sec.
* Ambient Temperature used: -25 C to +80 C
* Ambient Humidity Used: <85% RH
* Mechanical Life: 5,000,000 cycles
* Electrical Life: 100,000 cycles
