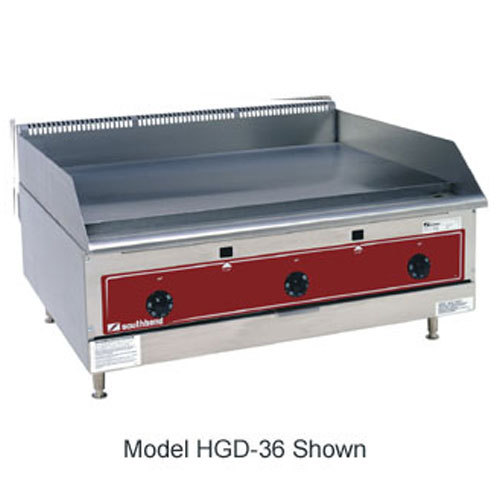

Southbend hdg-72 griddle, countertop, 72" wide x 24" de
Griddle, Countertop, 72" Wide x 24" Deep (30,000 BTU Every 12 "), 1" Steel Griddle Plate, Thermostatic Controls,
One year limited warranty (US only)
Griddle, Gas, Counter Model, 72" wide, 1" thick polished steel plate, electronic ignition (battery), (4) thermostatic controls range 150 - 400 F settings, s/s front & sides, 4" s/s legs, 180,000 BTU
* 30,000 BTU (NAT or LP) burner per 12"
* Gas Heat Control System: Each foot of griddle is heated by a "U" shaped burner. Each burner is controlled by a thermostatic control and is equipped with an independent pilot. For safety, each pilot has a flame failure device. A 3/4 rear gas connection is standard. Units over 48 wide are constructed of two bodies.
* Electronic spark ignition (battery)
* Stainless steel front, vent and sides are standard, rear and bottom panels are aluminized steel.
* 1" thick polished rolled steel plate
* Flame failure safety device
* "Insta-on" thermostatic controls for precise settings between 150 F and 400 F
* Imbedded load sensing thermostat
* Exclusive NO COLD Zone -Uniform heat distribution across surface
* Each burner equipped with runner tube
* 4" Spatula width front grease trough
* Fully welded griddle plate with protected exhaust vent
