Parker hannifin D3W4CNYC5 solenoid directional valve nu

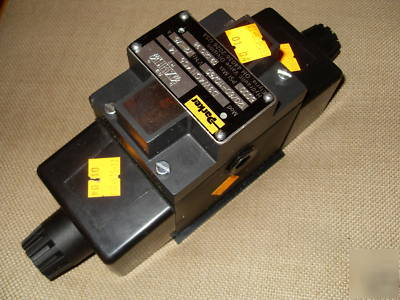

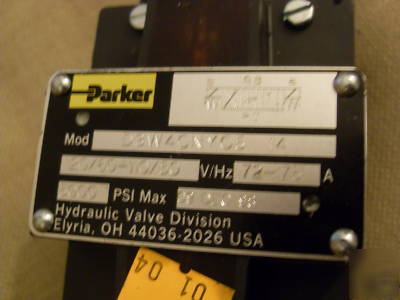

Parker Hannifin Valve, NEW, Never Used, has some factory inventory stickers.
Specs are as follows - info obtained from drillspot.com.
* D3W valves feature higher machine productivity and uptime.
* Solenoid/core tube design allows coils to be changed without removing valve from installation. Manual overrides.
* Compatible with the size 05 and CETOP-5 port and mounting patterns
* Max. operating pressure: 5000 psi
* Max. tank pressure: 1500 psi
* Integral conduit box for wire termination
* California Proposition 65 Warning: This product contains a product known to the State of California to cause cancer. Warning: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
Solenoid Directional Valve, CETOP 5 Size, Coil Volts 110-120, Hz 50/60, Inrush Amps 3.2, Holding Amps 0.86, Spool Type 1, Max GPM 40.0, Length 9.85 In, Width 2.76 In, Height 5.06 In, Maximum Pressure 5000, Max Tank Pressure 1500 PSI, Body/Spool Minimizes Pressure Drop and Energy Consumption, Standards ISO 4401, NFPA D05, Seal Type Nitrile O-Ring
