> Used miller maxstar 200SD tig/stick welder

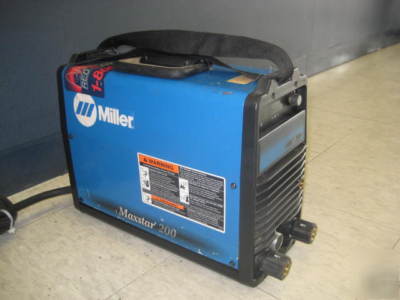

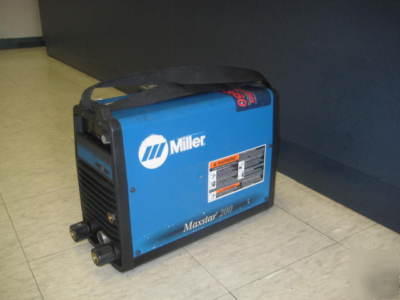

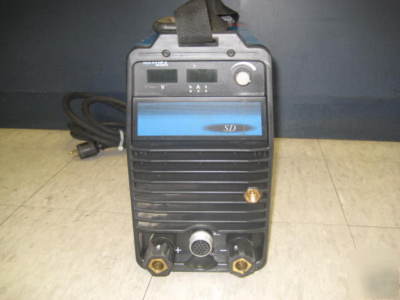

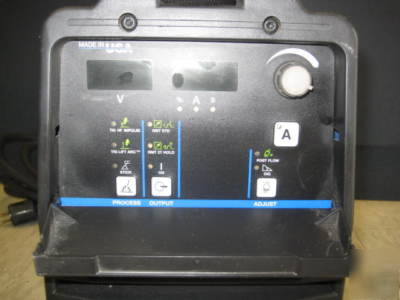

Used miller maxstar 200SD tig/stick welder
Provides a solution for every user's needs: from simple to fully automated
TIG (GTAW) and Stick (SMAW) Welding Processes
Blue Lightning - High Frequency Arc Starter for non-contact arc initiation
Blue Lightning provides more consistent arc starts compared to traditional high frequency arc starters. The 200 SD is more reliable and no maintenance is required on the solid state components. Preset parameters provide optimized starting for applications from thick to micro thin material. For unique applications, custom settings are programmable. Auto-Line Power Management Technology allows for any input voltage hookup (115-460 V) with no manual linking. Fan-On-Demand power source cooling system operates only when needed reducing noise, energy use, and the amount of contaminants pulled through the machine.

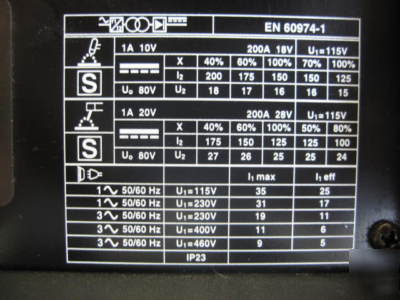

Input Power: 115 to 460 Volt, 50/60 Hz, 1 Phase or 3 Phase
175 A, 17 V at 60% duty cycle, three-phase
175 A, 17 V at 60% - 150 A, 16 V at 70% - 125 A, 15 V at 100% duty cycle, single-phase
Amps Input at Rated Output, 50/60 Hz:
Dimensions (in) H x W x D: 13.5 x 7.5 x 17.5
Dimensions (mm) H x W x D: 343 x 191 x 445
This unit includes the following: Torch, Flow Meter, Hose, Ground Cable.
Just add gas and tungsten to weld!
