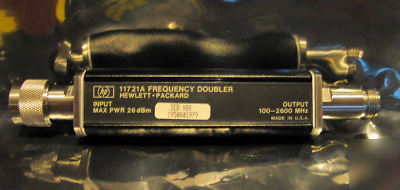

> New agilent 11721A frequency doubler 100 to 2.6 ghz
New agilent 11721A frequency doubler 100 to 2.6 ghz
The Agilent 11721A frequency doubler is an ideal accessory for extending the usable frequency range of signal generators, frequency synthesizers, or other signal sources. Operating on input frequencies of 50 MHz to 1300 MHz, it provides a doubled output in the range of 100 MHz to 2600 MHz. The Agilent 11721A will work well with any RF source with an output in the range 50 to 1300 MHz. The 50 ohm passive circuit of the Agilent 11721A offers low conversion loss, low spurious, and excellent flatness over its entire frequency range when operated above +10 dBm.
Works with any RF source with output in the range 50 to 1300 MHz
Low conversion loss and spurious
Excellent flatness over the entire frequency range
Conversion Loss (+13 dBm input, 50 to 1280 MHz) <15 dB
Spurious Referenced to Desired Output Frequency f(+13 dBm input with Harmonics < -50 dBc, 50 to 1280 MHz) f/2, -15 dB; 3f/2, -15 dB
Input/Output Impedance: 50 ohms nominal
