> Kalamazoo cold saw 350 semi automatic cutting CA350PV
Kalamazoo cold saw 350 semi automatic cutting CA350PV

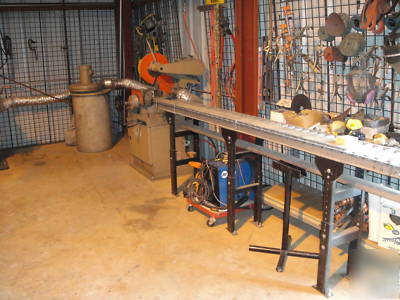

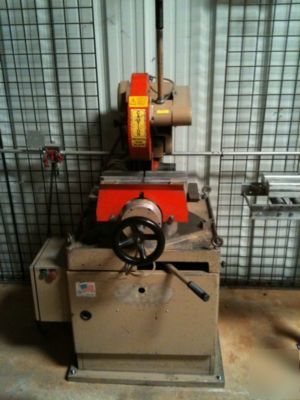

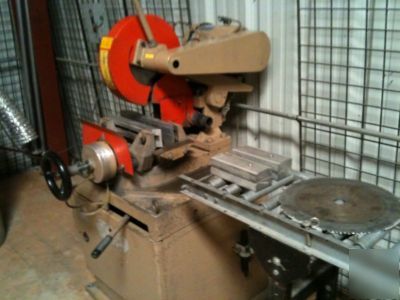

HERE IS A REAL NICE RUNNING LOW HOUR KALAMAZOO NON FERROUS COLD SAW. CLEAN, THIS MACHINE IS A GREAT WORKING COLD SAW, THE VACUUM AND ROLLER TABLE ARE INCLUDED.
THIS SAW CAN BE INSPECTED UNDER POWER IN Rancho Cordova CA. TO SET UP AN INSPECTION, PLEASE CALL Rio@ (***)-752-1587.
Vise: Air Powered with clamping pressure. Automatic operation during the cutting cycle. Self- Centering with replaceable wear plates.
Coolant System: Available not conected in our application.
Construction: Cast iorn Head, head support, bed, vise support, and vise jaws. Welded Steel Base.
Cutting Capacities: Round Tubing @ 90 Deg 4 3/4" @ 45 Deg 4 1/4"
Round Solids @ 90 deg 2 1/2" @ 45 Deg 2"
Rectangular Tubing@ 90 deg 5 1/2" x 4 3/8" @ 45 Deg 4" x 4"
Square Tubing @ 90 Deg 4 3/8" @ 45 Deg 4"
Square Solids @ 90 Deg 2 1/2" @ 45 deg 2"

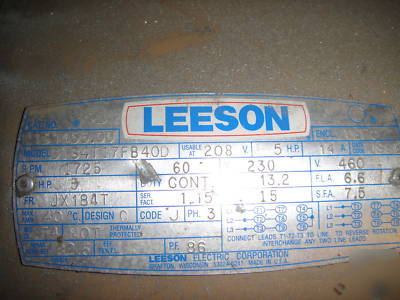

Electrics: Motor 5 hp 1725 RPM 208 Volt, 3 Phase, 60 hz.
Overall Dimensions: 70" H x 40" W x 50" D
