Hantek dso-5200A 2 channel 200 mhz scopemeter 250 msa/s
Hantek DSO-5200A 2 Channel 200 MHz Scopemeter 250 MSa/s

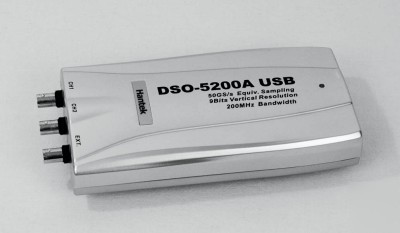

The Hantek DSO-5200A is a 2 Channel, 200 MHz Digital PC - USB based Oscilloscope.
The DSO-5200A is an extremely portable, lightweight electronics module that works in conjunction with your Windows based computer to create a powerful, 200 MHz, 2 channel digital oscilloscope. It uses the PC's USB port to communicate the incoming data to the included software. Your computer monitor becomes your oscilloscope display, and with 9 bits of vertical resolution you get a crisper display of waveforms than the other Hantek USB scopes can give. The software lets you do all the things you need to do with an oscilloscope, such as adjusting the vertical voltage reference, and the horizontal time base. This unit is supplied with software CD, probes, USB cable, and manual.
* INCLUDES: 2 x1/x10 (selectable) Probes, USB cable for power and communication, Manual, CD
* USB 2.0 interface, bus powered (self powered hub recommended)
* Small and easy to carry
* 250 MS/S real time sampling
* Windows 98/ME/NT/2000/XP/Vista and Windows 7 compatiable
* 23 measurement functions, with PASS/FAIL check
* Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, XY plot
* Waveforms can be saved to text, JPEG, BMP, MS Excel or Word files
* Development available via LabVIEW, Visual Basic, Visual C++, Delphi and C++ Builder support
Hardware Specifications & Additional Information
250 MSa/second (1 channel) ... 125 MSa/s (2 channels)
In stock in Colorado. 1 year factory warranty! from your authorized US distributor
