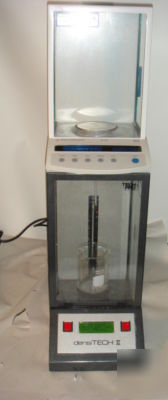

Densitech ii automatic specific gravity tester tech pro

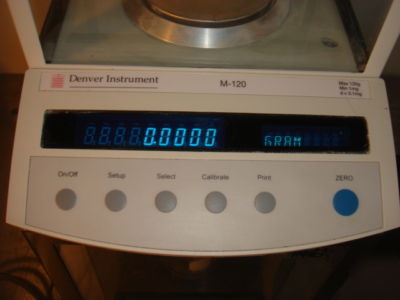

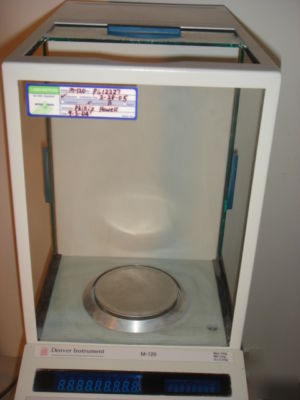

The Tech Pro densiTECH II, automatic specific gravity tester is designed for rapid and accurate determinations of density. Operation is simplified to allow test rates of up to 4 tests per minute. Accuracy of the instrument is better than +/- 0.025%. The densiTECH II utilizes a four decimal place analytical balance. This balance may be used separately for other weighing applications.

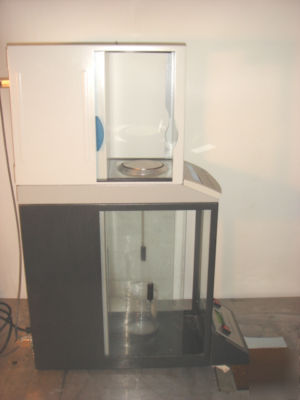

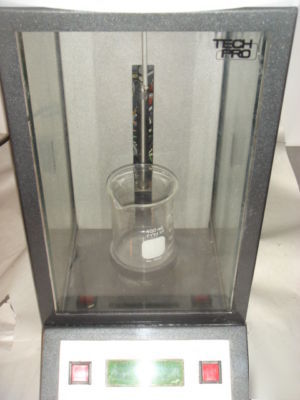

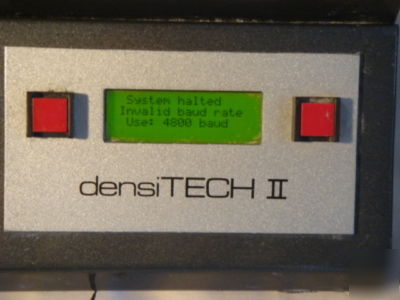

Density of a solid sample is determined by the hydro-static method by comparing the weights of the sample in air and water. The operator simply hangs the sample from the balance and pushes the start button. A micro-processor then weighs the sample in air, automatically raises a beaker of distilled water, take the weight in water and lowers the beaker. The density is displayed. The weight in air, weight in water, and the weight difference may also be displayed. The densiTECH II comes standard with RS232 output and the densiDATA, specific gravity and volume change software.
The densiDATA software allows for storage and recall of density measurements and also allows for the calculation of volume change. Up to 100 volume change readings can be calculated against the original reading.
The densiTECH II is automatically calibrated by an internal 100 gram weight every time the instrument is turned on.
