> Amci htt-20 . brushless multi-turn resolver transducer
Amci htt-20 . brushless multi-turn resolver transducer
Brushless Multi-turn Resolver Transducer
Used 30 Day Satisfaction Guarantee
* best angular accuracy and repeatability
* ideal for high-shock applications
* internally geared housing for reliability
* 100% compatible with AMCI's complete line of resolver interface products
The transducer contains two resolvers that are geared together in a vernier arrangement. For the 100 turn transducer, this arrangement requires only two gears. This mechanical simplicity makes the HTT-20 transducers more reliable then transducers that have a multi-pass gear train between the two resolvers. This mechanical simplicity allowed AMCI to design the HTT-20 transducers as a space saving, compact package. These resolver transducers have a 5/8" keyed shaft, AMCI's standard 1/4" X 20 mounting holes, sealed bearings, and a mil-spec connector.
* (2) Resolvers Vernier encoded 99 : 100
100 lbs. radial/50 lbs. axial maximum shaft loading. Bearing life rated at 2X10 9 revolutions minimum at maximum shaft load.
Mating Connector: (sold separately)
Connector Pinout: (Military Equivalent Part #: MS3102E20-27P)
HTT-20-100, HTT-20-180, HTT-20-1000, HTT-20-1800:
Full technical specs and drawings are available at: http:// /resolvers/htt-20-resolver.asp

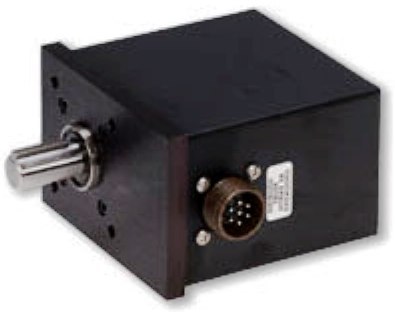

Photo shown is a stock photo. The case of one of the transducers is slightly dented. You will still have a 30-day Satisfaction Guarantee.
The manufacturer's list price for this transducer is US$1725.00
