12V dc 2-pole reversible momentary remote kit RM66

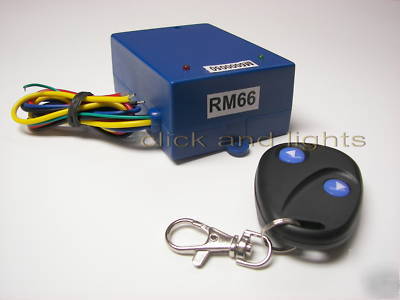

12V DC polarity reversible MOMENTARY output remote control switcher
-Momentary control any two way small DC motor bi-directional remotely, or use in any device that required DC output polarity to be switched remotely.
-Example: connect one of our LED light product in one direction and another one of our LED light product in a reverse direction onto the output of this kit and you can either momentary turn on the left light or the right light by just press and hold one of the button on the remote control. Or with motor, by connect this kit's output to a two way motor, you will be able to momentary control the motor either turning in clockwise or counterclockwise. This D.I.Y kit is great for any educational project, hobbyist applications, etc...
-Package included one receiver with one remote control (batteries and key chains included).
-Operating Voltage: 9Vdc ~ 16Vdc
-Built in with two relay, each relay contact is 40amp@14Vdc.
-If use in motor application, please uses with a small 10amp, 12Vdc motor only, not for heavy duty motor application.
-There is no protection that comes with this kit, power off everything while installing and double check all connections before insert power.
-Please use a 2 amp fuse inline with power line (red wire) for short or surge protection.
-2 buttons remote control with arrow on each button to show direction.
-Remote is use momentary control design, to operate, press and HOLD one of the direction button on the remote to activate device, release the button to stop all operation.
-Staple remote transmitting range is 22ft, but it can go as far as 100+ ft in certain open area with no obstructions or RF interference.
-Remote bandwidth frequency: 315MHZ.
-Each set is coded independently so there will be no interference with another near-by set.
-Receiver box dimension: L=3 1/4, W=2 1/4, H=1 1/4.
-Receiver equipped with a red and green LED to show the output polarity direction.
-Receiver provide holes on both side for easy mounting with standard mounting screws.

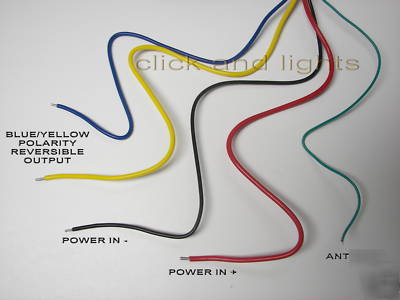

Input: Connect red wire to power supply 12Vdc, connect black wire to power supply ground or negative.
Output: There are two wires for the output, yellow and blue, when "left arrow" button on the remote is pressed and hold, +12V will present at the yellow wire and blue becomes ground/negative, release the button and both yellow and blue wires will become 0V, if the "right arrow" button is pressed and hold, +12V will present at the blue wire and yellow becomes ground/negative.
Do not connect directly to any AC power without using an AC/DC adapter.
