New digiplan mpc 2 stepper motor drive board #CD30

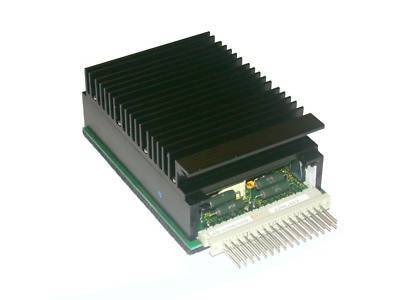

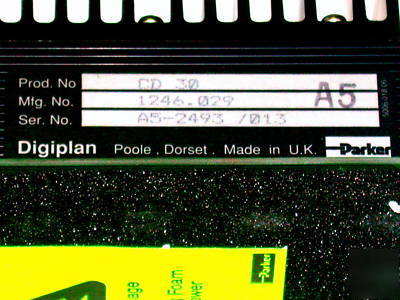

NEW DIGIPLAN MPC 2 STEPPER MOTOR DRIVE BOARD #CD30
Retail cost of more than $735.00.

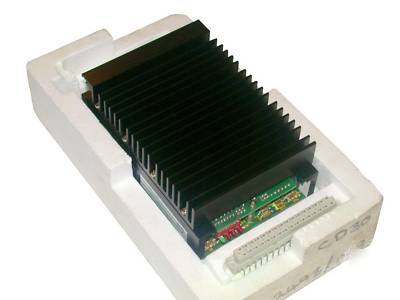

This is a brand new in the box board and it is fully guaranteed.
Amplifier Type - Bipolar recirculating chopper
Interface input impedance - Guilt-in pull-up resistors(4.7K) to +12V.
Interface logic level - Low(logic 0) 0 to 2V or short circuit to 0V, High(logic 1) +10V to +12V or open cicuit.
Power supply Voltage - +20 to +26VDC
Motor supply Voltage - +24 to +85VDC(Absolute limits: +20V to +95VDC)
Current Boost - 30%(5 second max. duration)
http:// /manuals/cd/CD20-30.pdf
