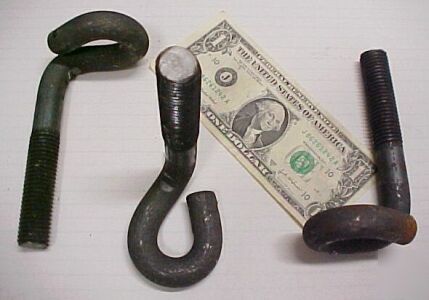

Lot 10 anchor tie bolts ¾-10 x 4-¾" eyebolts concrete
This item was acquired at a fastener company liquidation a while back. They are excellent for concrete anchors and steel fabrication, as well as other projects where heavy assemblies must be drawn together at ninety degree angles. The back of the eye sits relatively level against any flat steel surface, making them easy to weld if the application so requires. These are also handy when you drill your holes wrong and they don't line up right...
Overall length (tip of threads to back of eye): 5-1/4"
Grip length (tip of threads to face of eye): 4-1/2"
Tip of eye to back plane of bolt: 3"
Center of bolt axis to center of eye: 1-1/2"
Threads: 3/4-10 (diameter x threads per inch)
*These are often referred to as "rolled" threads, although they were cut with a threading die just like most other modern bolts. In years past, some inferior bolts were produced by 'rolling' threads into heated bar stock instead of cutting them. The modern designation "rolled" simply refers to a bolt (such as these) with a thread diameter that is slightly greater than the rest of bolt.
