Landis universal od cylindrical grinder 14†x 48â€, 1985

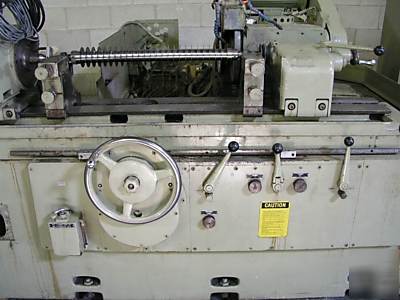

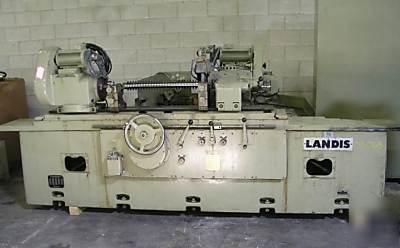

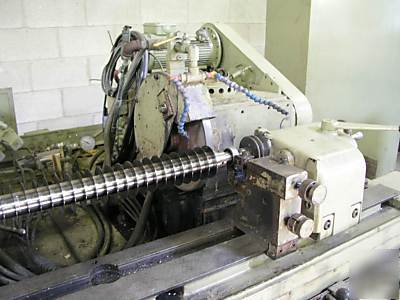

Landis Universal OD Cylindrical Grinder, 14 x 48
Hydraulically Powered Table Traverse: 2 to 240 IPM
Swivel Table Graduated, Inch Per Foot: 4-1/4"
Degrees Included Angle: 19 Degrees
Grinding Wheel: 16" Maximum Diameter x 2" x 5" Hole

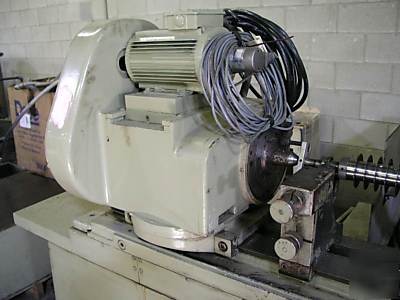

Wheelhead Swivel Range-Upper: 180 Degrees
Wheelhead Swivel Range-Lower: 60 Degrees CW, 30 Degrees CCW
Headstock Spindle Hole Diameter: 1-7/16"
Headstock Swivel Range: 120 Degrees
Headstock Work Center: #14 Jarno
Tailstock Work Center: #10 Jarno
Automation Infeed of Wheelhead at Table Reversal
Adjustable Table Tarry Left Hand & Right Hand
Landis Microsphere Wheel Spindle Bearings
5 HP Wheelhead Motor, Wired 3 Phase, 60 Cycle, 230/460 Volts
Bed Ways in Excellent Condition
Landis Microtronic Feed System With:
Auto Wheel Retract, Gauge or Timer
Variable Headstock Speed Wheel
Fast-Medium-Micro Feed Rates - All Presetable
Head Feed Left - L & R / Right - Only Plunge
2) Adjustable Table Traverse Stops
3 Phase, 11 KVA Electric Isolation Transformer
Main Coolant System Built Into Base of Machine
Wired for 3 Phase, 60 Cycle, 460 Volts
Grinding Motor 3 Phase, 60 Cycle, 230/460 Volts, 1726 RPM AC
Vee-Arc Adjustable Speed Motor Controllers
Main Machine: 143" L-R x 86" F-B x 60" H x Approx. 9,000 Lbs.
Electric Cabinet: 18" L-R x 42" F-B x 85" H x Approx. 600 Lbs.
Operator Console: 24" L-R x 24" F-B x 63" H x Approx. 500 Lbs.
Skid of Coolant Tank & Parts: 40" L-R x 48" F-B x 34" H x Approx. 500 Lbs.
Skid of Misc. Parts: 40" L-R x 48" F-B x 54" H x Approx. 200 Lbs.
