5-second digital theodolite w vertical tilt sensor

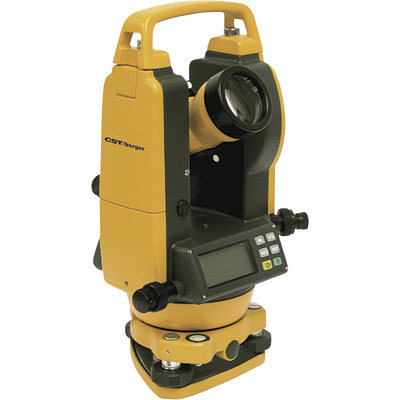

5-Second Digital Theodolite w Vertical Tilt Sensor
The CST/Berger 5-second digital theodolite with vertical tilt sensor offers contractors the best solution for angle and alignment needs. Application: Contractors, Magnification (mm): 30X, Range (ft.): 450, Kit Includes: Batteries, rain cover, tool kit, lens cloth and carry case
* Offers contractors the best solution for angle and alignment needs
* Provides 5-second angular accuracy with a vertical tilt sensor that compensates for tilts in the vertical axis, providing for more accurate angle measurements
* Dual digital display with 6-key interface makes instrument easy to use
* Includes optical plummet that allows user to align directly over reference point
* Allows user to view data in vertical angle mode as well as percentage of grade
* Can turn angles in left or right direction
* 30X telescope with 53in. minimum focus; 1:100 stadia ratio
* Working range is 450ft. in radius
* Includes batteries, rain cover, tool kit, lens cloth and carrying case
