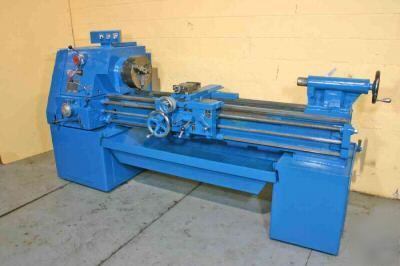

17" x 60" south bend engine lathe, turnnado, #75GJ2614
17" X 60" SOUTH BEND ENGINE LATHE
SERIAL ............................. 75GJ2614
MODEL .............................. TURNNADO
SWING OVER WAYS .................... 17-1/8"
SWING OVER CROSS SLIDE ............. 9-1/2"
DISTANCE BETWEEN CENTERS ........... 60"
SPINDLE SPEEDS ..................... (18) 30 TO 1580 RPM
THREADS ............................ (60) 2-3/4 TO 160 TPI
FEEDS .............................. (60) 0.0021 TO .1242 IPR
DIAMETER OF SPINDLE HOLE ........... 3-5/32"
CHUCK .............................. 12" 3 JAW
SWIVEL COMPOUND .................... YES
TAPER IN TAIL STOCK ................ #5 MT
HARDEN WAYS ........................ YES
CHIP PAN ........................... YES
MOTOR .............................. 10 HORSEPOWER
