14"X40" kellenberger "kel-varia" cnc cyl grinder #24396

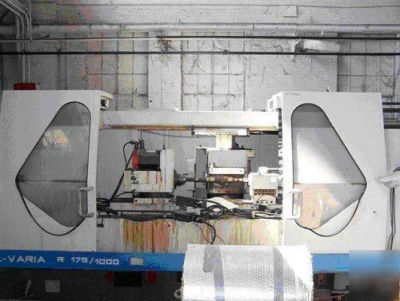

14" x 40" KELLENBERGER "KEL-VARIA" CNC
New 1997, Serial No 650275, Model R175/1000
Semi-Enclosed Sound Enclosure w/Sliding Doors
Manuals & Operating Instructions
Swing Over Table, Maximum.............. 14"
Distance Between Centers, Maximum...... 40"
Grinding Wheel Width, Maximum.......... 4"
Workhead Swivel Range.................. -30 to + 120-DEGREES
Upper Table Swivel Range............... 0 to 9-DEGREES
Lower Table Travel, Maximum (Z-Axis)... 45"
Lower Table Speed, Maximum (Z-Axis).... 49 FPM
Cross Slide Travel, Maximum (X-Axis)... 12.59"
Cross Slide Speed, Maximum (X-Axis).... 25 FPM
Peripheral Grinding Wheel Speed........ 6300 SFPM
Workhead Spindle Speeds, Range......... 5 to 500 RPM
Grinding Wheelhead Spindle Motor....... 6 HP
Floor Space Required, L x W............ 12' x 7'
Weight Approximately................... 11025 LBS
NOTE: Appears To Be In Very Good Condition W/A
Replacement Cost Of Over $350,000.00.
PRICE: F.O.B. OHIO (FRANKLIN).......... $99,500.00
