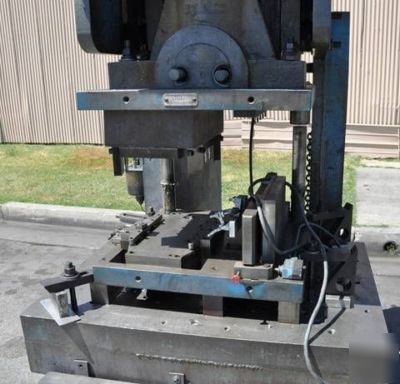

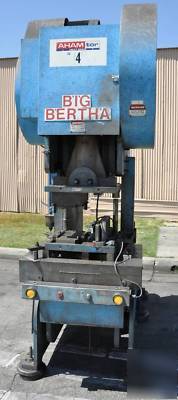

60 ton heim obi press, mdl. 9X-obi-bg, s/n 1910
CAPACITY .. .. 0095 TON X 3"
TONNAGE . 95
RAM STROKE .... .. 3"
RAM ADJUSTMENT .. .. 4"
SHUT HEIGHT .. .. .. 22"
BED SIZE (L-R, F-B) .. .. 36" X 26"
RAM SIZE (L- R, F- B) .. 19" X 13"
THROAT .. . .. 16"
OPENING THRU BACK . .. 20"
STROKES PER MINUTE ... .. 50
DIMENSIONS (W X D X H) ... .. 60" X 88" X 124"
WEIGHT .. .... 12,100 LBS.
MOTOR .. .. 10 HP
