31.5†x 39.4†x 144†camut hydraulic surface grinder

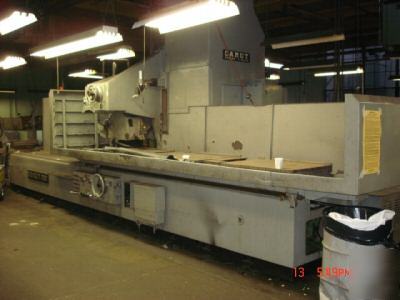

31.5 x 39.4 x 144 CAMUT Hi-column hydraulic surface grinder with automatic downfeed, Model TR-2-3000M, S/N 30704, new 1971
Table working surface 27.56 x 148
Maximum height table to new 22 dia. wheel 39.37
Maximum height table to new 15 dia. wheel 42.91
Maximum wheel size 22 dia. x 6 W x 8 hole
Variable table speeds 3.94-98 FPM
Automatic cross feed rates .12 to 3
Automatic downfeed rates (10 steps) .0002 -.002
Automatic downfeed of wheel (10 steps)
Automatic vertical downfeed may be programmed with wheel cross reversal or table reversal (single or double)
(3) 27 x 39 EMC electromagnetic chucks in series with variable control
Head mounted hydraulic wheel dressing with 12 stroke and variable control
Marposs electronic sizing (vertical movement)
Auto. central lubrication system
(4) wheel mounts with grinding wheels
EXL200 Casven coolant separator (1200 liter cap.)
15 H.P. Vichers dual delivery pump system
Approx. weight (machine only): 68,200 lbs.
Approx. total weight: 70,000 lbs.
Floor space required: 30 6 L x 150 W x 168 High
