New jiffy uat riveter nose, puller, fits huck 352 244

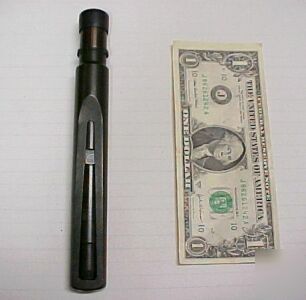

The outer housing of the assembly is marked "UAT 9190 SPM." Inside the housing are two other parts which are (screwed?) together I suppose. The one in front is marked "UAT 9446 SRM" and the back one has "UAT 9038." Inside the black plastic cap is a small steel ring, along with a spent rivet, and I don't know what that's for. I wish we could have put the fastener size in the listing but we are not entirely sure about that either. The manufacturer is showing the Model 9190 in two different catalogs - the top link is the UAT catalog for 5/32" (-05) rivets, and the bottom link for 3/16" (-06) rivets (Small PDF Files):
http:// /products/installation/lockbolt/pdf/Jiffy-Installation_p159.pdf
http:// /products/installation/lockbolt/pdf/Jiffy-Installation_p155.pdf
SPM = Short Pintail Modified Chisel Nose Assembly
Install Shear and Tension Pull Type NAS GP Lockbolt Fasteners
