New square d 9070 transformer disconnect 240/460V-115V

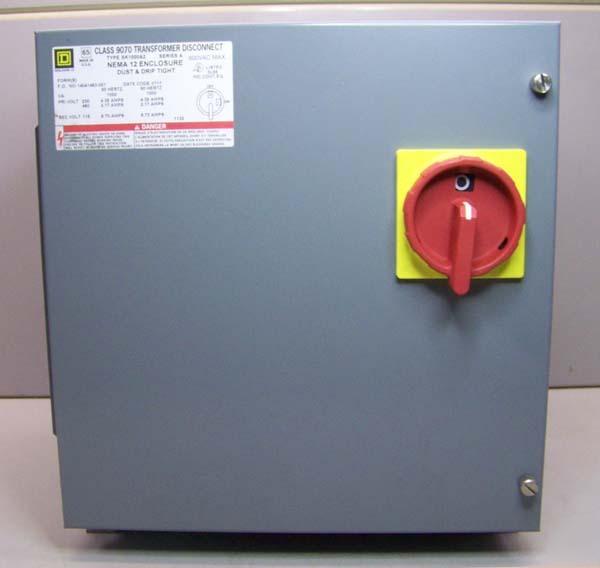

New Square D 9070 Transformer Disconnect 240/460V-115V
This is a new Square D Class 9070 Transformer Disconnect. The transformer is a Type SK1000A2D1 Series A. It is in a Standard NEMA 12 dust and drip tight enclosure. Cosmetically the item is new in box. It was unpacked for photos. The box has some stains and dust on it from storage.
* Disconnect switch 45A, 600VAC, 100,000 AIC rating when protected by Class CC fuses.
* Transformer primary side 1000VA @ 50/60Hz, 230/460V, 4.35/2.17A.
* Transformer secondary side 115V, 8.70A.
