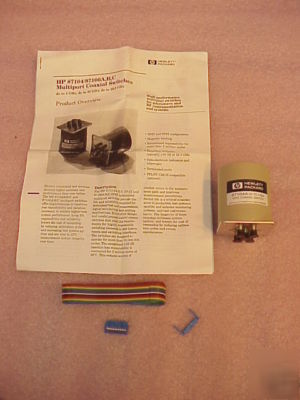

New hp/agilent 87104A multiport coaxial switch opt T24
This item is BRAND NEW and CURRENT PRODUCT priced at $1641.00 from Agilent.
The HP/Agilent 87104A multiport switch improves insertion loss repeatability and isolation, which is necessary for
higher performance test systems. The repeatability and reliability of this switch is vital to ATS measurement accuracy
terminated multiport switch provides the long life and reliability required for automated test and measurement, signal
monitoring, and routing applications. Highly repeatable switching capability is made possible through Agilent's rigorous
design and tight manufacturing specifications. Low insertion loss repeatability reduces sources of random errors in the
measurement path, which improves measurement accuracy.
Option T24: 24 VDC bias with TTL logic.
Excellent RF Repeatability & long life span:
Operating life of 10 million cycles
Guaranteed repeatability of 0.03 dB up to 5 million cycles
Excellent isolation, typically >90 dB at 26.5 GHz
Opto-electronic indicators and interrupts
