High power 1:1 balun for 160M - 30M bands (1 - 10MHZ )

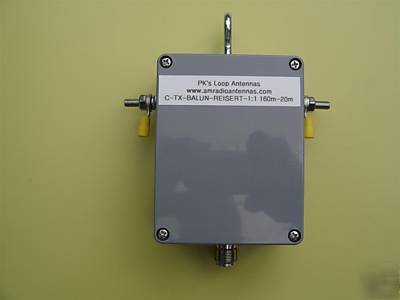

High Power 1:1 Balun for 160m - 30m Bands (1 - 10MHz )
This balun is engineered for the low frequency and HF bands including 160 & 80, 75, 60, 40 and 30 Metres
Utilizing the Reisert design, for a 2KW Continuous Power Choke Balun, it will remove all stray current on the coax feed line and balance up the feedpoint of :-
* Verticals, including Loaded Verticals
The radiation pattern of a typical Horizontal Dipole antenna will become more symmetrical and any Radiation previously coming from the feedline will be virtually eliminated !
Prevents Transmitter interference from a radiating feedline and stops RF coming back into your shack !
Using the highest quality components available, including silver plated teflon hardline coax and stainless steel binding posts, supplied with S/S washers and nuts.
High Power operation is assured, with the ability to handle the full US Legal Limit plus more... ( at least 2KW into a resonant antenna )
Efficiency is greater than 99.99%, which is far better than our competitors, try the tests yourself, put your old balun on notice !
Wideband operation make it ideal for Longwave / Mediumwave Reception, with the useful frequency range extending to well below 500KHz, again try that with a conventional HF 2-30MHz 1:1 Balun and you'll wonder where all the signals went !
Can be used by AM / Mediumwave Broadcasters, ideal for that standby LP transmitter !

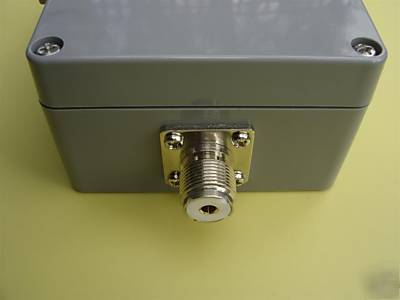

Manufactured with a long life UV resistant IP66 case and gasketed lid and an SO-239 Socket with Gold plated centre pin.

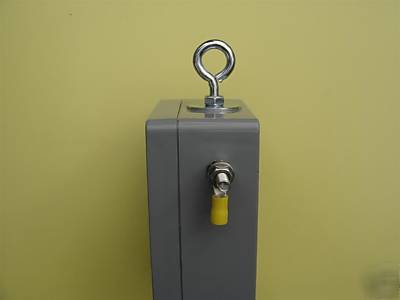

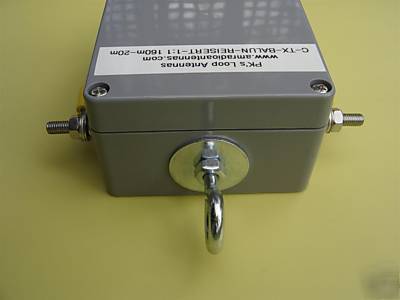

Designed for maximum strength as a Dipole Centre Point and has a top support eyelet for connection to a rope or guy wire.
Proudly Australian Designed and Built !
