@ hp - agilent 11975A 2.0 to 8.0 ghz amplifier @

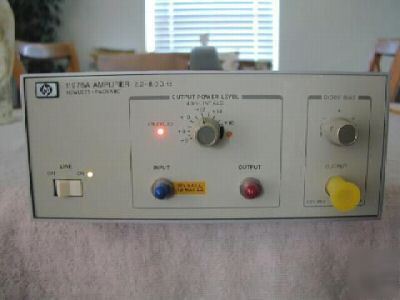

The HP Agilent 11975A Amplifier has automatic level control (ALC) that can be switched on and off. An "unleveled" light indicates that ALC is off. This bias current is needed by some external harmonic mixers. The amplifier has automatic level control (ALC) that can be switched on and off. An "unleveled" light indicates that ALC is off. Use the 11975A as a LO driver for the Agilent 11970/71 series harmonic mixers to achieve maximum performance. In addition, the amplifier has an adjustable bias current output port that supplies a maximum of 11 mA at +3 volts. This bias current is needed by some external harmonic mixers. Product Specs: The Signal gain varies between 9 and 15 dB depending upon frequency. The Agilent HP 11975A has a frequency range of 2 to 8 GHz and adjustable output of +6 to +16 dBm.
My phone # is (***)-235-5613. This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html
