> Sony spt-M104A video surveillance camera with lens
Sony spt-M104A video surveillance camera with lens
***********************************************************************************************************************************

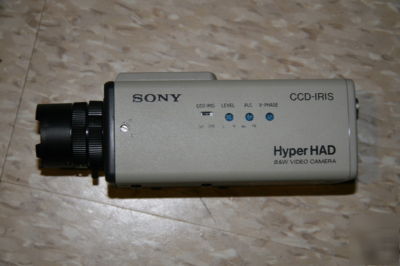

Sony SPT-M104A Video surveillance camera with lens.
1/3" Hyper HAD CCD B/W camera (510 x 492 picture elements)
380 line horizontal resolution
Excellent sensitivity (minimum scene illumination 0.1 lux at f1.2)
Wide range electronic CCD IRIS function (1/60 ~ 1/100,000 sec)
Adjustable level and peak to average light compensation in CCD IRIS mode
C/CS-mount with Precision Double Cam mechanism
Accepts DC type auto iris lenses
Compact design: 4 7/8" (123mm) length
Can adjust for backlight situations electronically when used with auto iris lenses
Accepts both C and CS mount lenses.
Allows the use of cost effective manual iris lenses
Pickup Device CCD: 1/3" HyperHAD Interline Transfer CCD
Pic. Elements (HxV): 510 x 492
Horizontal Resolution: 380 Lines
Video Output: 1.0Vp-p, BNC x 1
Power Requirement: AC 24V 10%, 60Hz
Minimum Illumination: 0.1 lux at f1.2
CCD Iris (sec): Yes 1/60 - 1/100,000 sec.
Dimensions: 2 1/8" x 2" x 4 7/8"
***********************************************************************************************************************************
Cameras are removed from working environment upgraded to color system.
Items are in a good cosmetic condition.
1 Sony SPT-M104A video surveillance camera with lens
1 SPT-M104A Installation/Operation Manual
