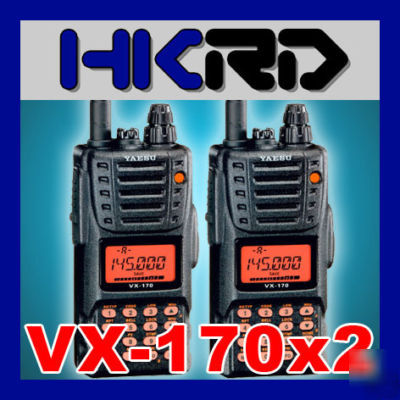

Pair yaesu vx-170 2M fm handheld transceiver VX170
2m FM Handheld Transceiver x2pcs
The VX-170 is a compact, high-performance FM hand-held providing up to five Watts of RF power, along with big audio output (700 mW) and unmatched protection against the elements!
Protected against water ingress to IPX7 specifications (submersion for up to 30 minutes at a depth of 3 feet), the VX-170 features long operating time, thanks to the supplied 1400 mAh NiMH Battery Pack.
The 16-key VX-170 includes direct keyboard frequency entry and direct DTMF input, along with quick, one-touch access to YAESU s exciting and fun WiRES-II VoIP Internet Linking system!
7.2v Battery Pack 1400mah FNB-83
Free Upgrade to Original Switching Charger NC-60G (with Plug Adaptor)
Carry your radio around the world!
* Yaesu NC-60G is an original switching charger compatible with NC-88B/C/U and NC-72B/C/U, but with a wider voltage range 110-240VAC.
* NC-60G is originally of US socket plug.
The VX-170 conforms to IPX7 specifications for submersibility (submersion for up to 30 minutes at a depth of three feet).
* Outstanding Receiver Audio
The VX-170's hefty 700 mW of audio provides plenty of volume when operating in a noisy environment.
* 1400 mAh Battery Pack Yields Long Operating Time
The VX-170 is supplied with a long-life 1400 mAh Ni-MH Battery Pack, for extended operating time during search-and-rescue or public service event operations.
* Expanded Receiver Coverage
The receiver's frequency range is 137-174 MHz, covering many public service, marine, and government channels.
To prevent an unauthorized person from using your VX-170, you may engage a security password that must be keyed in prior to operation, if you like.
* Keyboard Frequency Entry
Operating frequencies may be entered directly from the front panel keypad, which may also be used for quick recall of memory channels by number.
* Weather Broadcast Channels
In the U.S. version, a dedicated special memory bank of ten NOAA Weather Channels is available, with a "Severe Weather" alert capability.
* EAI (Emergency Automatic ID) Feature
Ideal for search-and-rescue work, the EAI feature can be commanded on so as to identify your VX-170, and engage your PTT and microphone, remotely in an emergency situation. So if you don't check in during a search, help can be dispatched, with the automatic TX function allowing others to perform direction finding. The EAI feature is not included in the U.S. version at this time.
Besides the usual CTCSS and DCS Encode/Decode features you've come to know and love on a Yaesu transceiver, the VX-170 includes a "Split Tone" capability that allows you to Encode a CTCSS tone, and Decode DCS, or vice-versa. You can also Encode (without decoding) either CTCSS or DCS.
5, 10, 12.5, 15, 20, 25, 50, 100 kHz
Nominal: 7.2 V DC, Negative Ground
Operating: 6.0 ~16 V, Negative Ground(EXT DC JACK)
11~16 V, Neg. Ground (EXT DC JACK while Charging)
125 mA (Receive) 200mW Output
45 mA (Standby, Saver Off) VHF
20.5 mA (Standby, Saver On)
4 F to +140 F ( 20 C to +60 C )
2.4" x 4.7" x 1.3" (60 x 120 x 32 mm)
13.8 oz. (390 g) with FNB-83 & antenna
Low 0.5 W (@ 7.2 V FNB-83)
Variable Reactance F2D , F3E
At least 60 dB down (High & Mid)
Double-Conversion Superheterodyne
0.2 V for 12 dB SINAD (137-140 MHz, NFM)
0.16 V for 12 dB SINAD (140-150 MHz, NFM)
0.2 V TYP for 12 dB SINAD (150-174 MHz, NFM)
NFM, AM 12 kHz / 35 kHz ( 6 dB / 60 dB)
700 mW @ 16 for 10 % THD (@ 7.5 V) Internal SP
400 mW @ 8 for 10 % THD (@ 7.5 V) EXT SP Jack
VX-170's accessories (not included)
There are original accessories of VX-170. Please browse our listings if you are interested.
* This radio is export wide band version.
* The export wide band version is based on the configuration of EU version but with a wider transmitting frequency range.
* Some specific features which can be found in the US version (e.g. Weather channel, Auto Repeater Shift system etc.) may not be available, but they may be attained by modification.
* Please check your local regulations carefully before you operate the radio(s) in your country/region. We try our best to serve you but we are not responsible for any consequence of breaking your local regulations and law.
