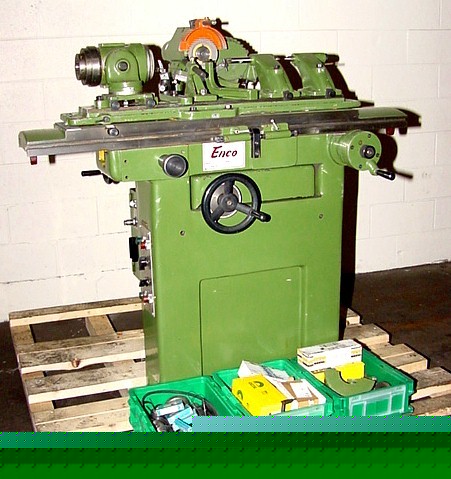

Enco (copy of a makino c-40) tool & cutter grinder
ENCO (COPY OF A MAKINO C-40) TOOL & CUTTER GRINDER
UNIVERSAL TOOL & CUTTER GRINDER
MODEL: 93400 S/N: 481 NEW: 1984
SWING OVER TABLE ................................. 10"
DISTANCE BETWEEN CENTERS ......................... 27"
DISTANCE BETWEEN TAILSTOCK & WORKHEAD ............ 14"
TABLE WORKING SURFACE ............... 5-5/16" X 37-1/2"
LONGITUDINAL TRAVEL ............................... 16"
SWIVELING ANGLE ........................... 180 DEGREES
TABLE GRADUATION ON END, FOR TAPER OF .. +\- 10 DEGREES
GRADUATION FOR TABLE SWIVEL MOVEMENT ... +\- 60 DEGREES
CROSS MOVEMENT OF WHEELHEAD ....................... 10"
VERTICAL MOVEMENT OF WHEELHEAD .................... 10"
WHEELHEAD SWIVELS ......................... 360 DEGREES
WHEELHEAD TILTS ........................ +\- 15 DEGREES
MINIMUN DISTANCE BETWEEN SPINDLE CENTER & TABLE
SURFACE .......................................... 2"
MAXIMUM DISTANCE BETWEEN SPINDLE CENTER & TABLE
SURFACE ......................................... 12"
GRINDING WHEEL SPINDLE SPEEDS .......... (3) 2600, 3700
GRINDING WHEEL SPINDLE MOTOR .................... 3/4HP
APPROX. FLOOR SPACE ..................... 61" x 68-1/2"
APPROX. MACHINE WEIGHT ....................... 2560 LBS
FRONT & REAR HANDWHEELS FOR THE TABLE FEEDS
3/60/220-440 VOLT WHEELHEAD SPINDLE
THIS MACHINE IS MADE IN TAIWAN. THE SAME MACHINE NEW
*** INSPECT UNDER POWER IN HARRISON, NJ WAREHOUSE ***
*** ORIGINAL PAINT, EXCEPTIONAL CONDITION ***
