> 197,KT7040 high sensitivity pointer analog multimeter
197,KT7040 high sensitivity pointer analog multimeter

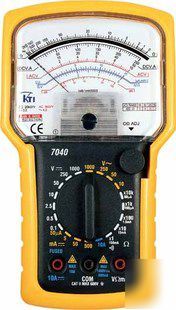

KT7040 High Sensitivity Precision Pointer Analog Analogue Multimeter Voltmeter Ammeter Ohm Tester S
* - High sensitivity, precision pointer Multimeter
* - AC / DC voltage measurement 1000V maximum
* - DC Current 10A maximum test
* - The maximum measurable 20M resistance measurement
* - On-off test and diode test
* - Input impedance: 20K / VDC, 9K / VAC
* DC voltage 0.1/0.5/2.5/10/50/250/1000V ( 3.0% fs)
* AC voltage 10/50/250/1000V ( 4.0% fs)
* DC current 0.05m/5m/50m/500m/10A ( 3.0% fs)
* Resistance 2K/20K/200K/2M/20M ( 3.0% fs)
* Diode Test Test current of about 1mA, test voltage of about 2.4V
* dB test -10 ~ 56 (0dB 1mW/600 )
* Operating Temperature 0 ~ 40 at RH <80%
* Weight around. 470g with battery
* Compliance with international safety standards: EN61010-1, CAT II, 600V
* 1 x KT7040 High Sensitivity Analog Multimeter Analogue
