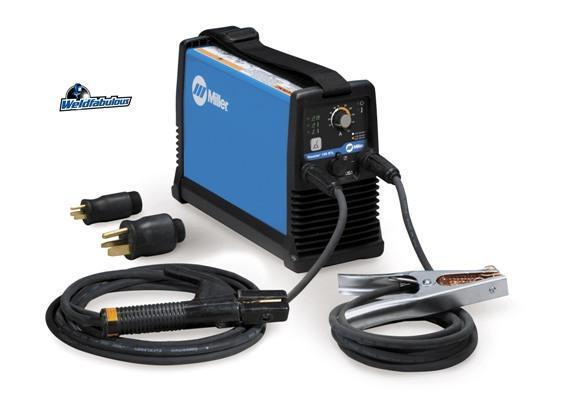

Miller 907135 maxstar 150 stl tig stick welder
Miller 907135 Maxstar 150 Stl Tig Stick Welder
Best of class - Provides maximum portability and performance in most compact TIG/Stick packages in the industry. Dependability and performance all in one machine.
New! Miller's exclusive multi-voltage plug (MVP) allows connection to 115 or 230 V receptacles without tools - choose the plug that fits the receptacle and connect it to the power cord.
STL: Provides the basic features that are required for most DC TIG or Stick welding applications.
Portable in the shop or at the job site - at 13.7 lb the shoulder strap allows the operator to easily move from location to location.
Auto-Line Power Management technology circuitry automatically connects to 115 - 230 VAC, single-phase power without removing the cover to relink the power source.
Low OCV Stick reduces open-circuit voltage to 12-16 VDC when power source is not in use.
Adaptive Hot Start for stick arc starts prevents electrode sticking.
Full function remote control allows operator to crater out when doing critical work. (6 pin foot or finger tip control available.)
Single Amperage Range allows operator to accurately set amperage on both 115 V or 230 V primary power.
Built-in gas solenoid eliminates the need for bulky torch with a gas valve.
Thermal overload protection with indicator lights helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
Keeps output of the power source constant regardless of fluctuation in input power 10%.
* 70 A at 22.8 VDC, 115 VAC, 100% Duty Cycle
* 100 A at 24 VDC, 115 VAC, 35% Duty Cycle
* 100 A at 24 VDC, 230 VAC, 100% Duty Cycle
* 150 A at 26 VDC, 230 VAC, 30% Duty Cycle
* 100 A at 14 VDC, 115 VAC, 100% Duty Cycle
* 150 A at 16 VDC, 115 VAC, 30% Duty Cycle
* 100 A at 14 VDC, 230 VAC, 100% Duty Cycle
* 150 A at 16 VDC, 230 VAC, 30% Duty Cycle
* Stick: 20 - 100 A , 115 VAC
* Stick: 20 - 150 A , 230 VAC
* Power source with cord and MVP plugs
* 10 ft (3 m) work clamp with 25 mm Dinse connector
* 13 ft (4m) Stick electrode holder with 25 mm Dinse connector
