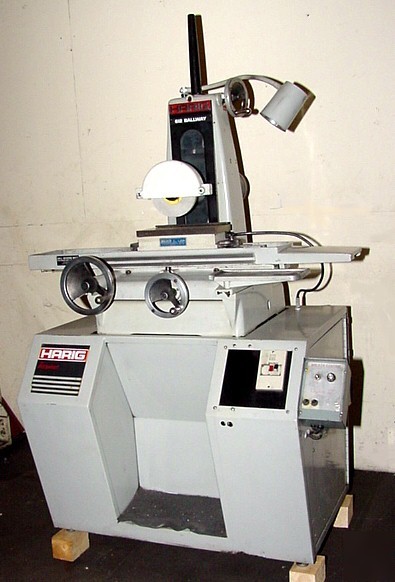

Harig 618 "ballway" precision hand feed surface grinder
HARIG 618 "BALLWAY" PRECISION HAND FEED SURFACE GRINDER
6" X 18" HARIG (MADE IN U.S.A.) "PRECISION"
HNADFEED SURFACE GRINDER w/BALL BEARING TABLE
MODEL: 612 BALLWAY S/N: B-18497 NEW: 1991
WIDTH & LENGTH GROUND ......................... 6" X 12"
LONGITUDINAL TRAVEL ........................... 12- 3/4"
CROSS TRAVEL ................................... 6- 3/4"
WORKING HEIGHT UNDER THE WHEEL................. 11- 3/4"
GRINDING WHEEL DIMENSIONS (DxWxB).... 7" x 1/2" x 1-1/4"
VERTICAL HAND WHEEL, GRADUATION................. 0.0005"
CROSSFEED HANDWHEEL, GRADUATION.................. 0.001"
FLOOR AREA OPERATING SPACE.................... 71" X 45"
APPROXIMATE WEIGHT............................ 1,250 LBS
- LARGER MORE STABLE 618 HARIG MACHINE BASE OPTION
- HARIG TOOL STEEL HARDENED WAYS OPTION
- 6" X 12" O.S. WALKER "LBP" FINE DIVISION
- LATE MODEL O.S. WALKER NEUTROFIER CONTROL w/VARIABLE HOLD
- HARIG "FLO-CLEAN" AUTO LUBRICATION SYSTEM
- 1.5 HP 3/60/208-220-440 VOLT SUPER-PRECISION DIRECT DRIVE
- MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
NEW HARIG LEADSCREW (CROSS AXIS) & NUT INSTALLED FEB. 2009
