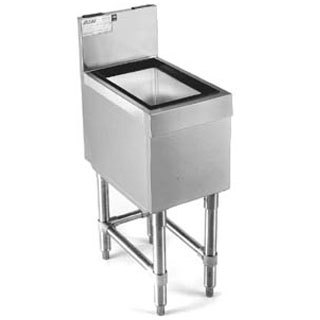

Eagle B18IC-24 underbar ice chest, stainless steel, 24"

Underbar Ice Chest, Stainless Steel, 24" x 18", Spec-Bar-2000 Series
Spec-Bar 2000 Underbar Ice Bin Unit, 18"L x 24"D, insulated ice bin 16" x 20" x 10-1/2"deep, 64 lb. capacity, sliding cover, 20/304 bin, top, front & ends, galvanized back, s/s legs & crossrails, adjustable feet
* Body, legs and crossbracing constructed of type 304 stainless steel for strength and corrosion resistance
* Stainless steel adjustable bullet feet
* Ice bin insulated with foamed-in-place insulation for maximum efficiency
* Non-metallic breaker strip prevents heat transfer to ice bin
* Removable two-piece stainless steel cover for cleaning ease
* Rectangle openings provided in backsplash for tubing
* Standard model drains are a 1 1/2" (38mm) tailpiece, cold plate model drains have 1/2" (13mm) NPT
* Tubing access hole dimensions are 7/8" x 2 7/8" (22 x 73mm) and capacity per hole is 12 lines of 1/4 I.D. x 3/8" O.D. (6 x 10mm) nylon braided tubing
* Legs are 1 5/8" (41mm) diameter type 304 stainless steel with stainless steel bullet feet
* Optional deeper ice bin available on 19" (483mm) wide models - Interior ice bin is 10 1/2" (267mm) deep in standard models and 14 1/2" (368mm) deep in extra deep models
