> Wilkerson R21-02-000 dial-air regulator gauge
Wilkerson R21-02-000 dial-air regulator gauge

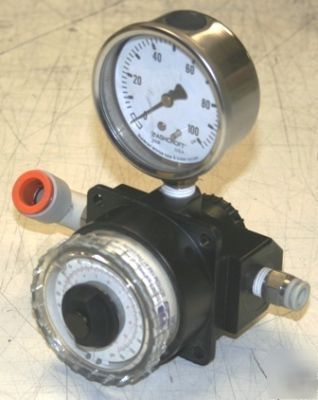

Wilkerson R21-02-000 Dial-Air Regulator
Dial-Air regulators feature a transparent, pressurecalibrated, non rising adjustment dial for quick adjustment of secondary pressure. If a gauge (R21, R31, R41) is required for monitoring reasons, two 1/4" gauge ports are provided; however, these are usually used for additional outlet ports. The full reduced pressure range can be dialed in less than 270 of dial rotation. This feature is particularly advantageous if secondary pressure must be changed frequently. The transparent dial can be color or graphics coded for easy reference to required pressure changes. Dial Air regulators can be mounted in any position so dial face is always visible. All Dial-Air units have a slight constant air bleed: 0.05 SCFM (0.024 dm3/s), @100 PSIG (6.9 bar) inlet and 90 PSIG (6.2 bar) outlet.
* Non-Rising Pressure Adjusting Dial
* High-Relief Flow (3/16" Relief Orifice)
* Two 1/4" NPT Gauge Ports, Usually Used for Additional Outlets
