> Sony svo-9500MD vcr medical endoscopy

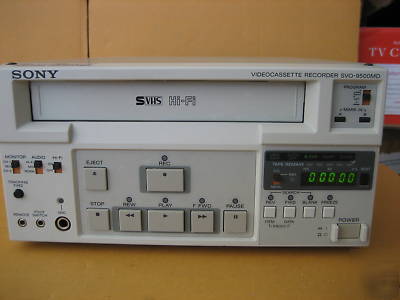

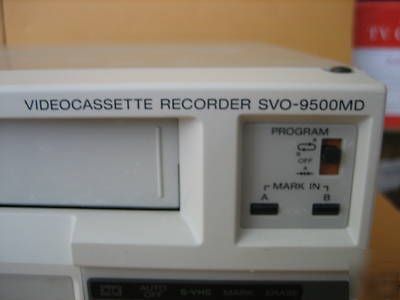

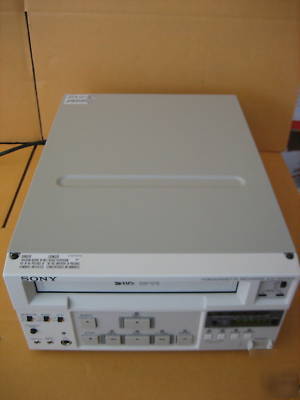

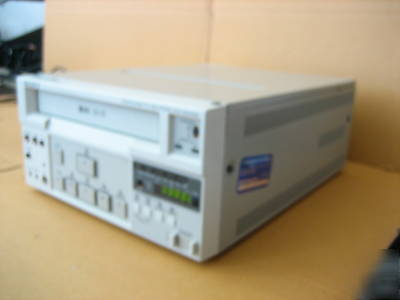

Sony svo-9500MD vcr medical endoscopy
Sony SVO9500MD Videocassette Recorder Specs
Rotary 2-head helical scan system
Converted subcarrier direct recording

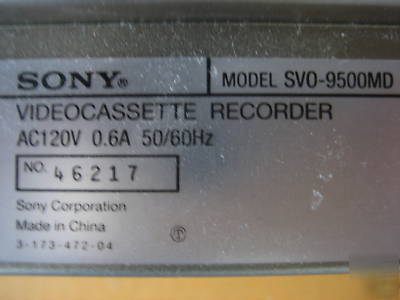

AC 120V, 60 Hz, 0.6A less than 72 VA
10 3/4 x 5 1/4 x 14 1/2 inches

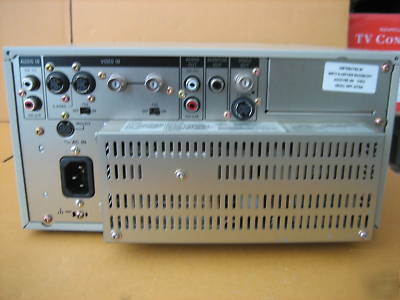

BNC;1.0Vp-p, 75 ohms unbalanced
S-in (4P); y: 1.0Vp-p, 75 ohms unbalanced
C: 0.286Vp-p, 75 ohms unbalanced at burst level
S-out (4P); y: 1.0Vp-p, 75 ohms unbalanced
LINE IN; CH-1/CH-2 (RCA PIN) -10dBu, 47k ohm, unbalanced Microphone; Normal audio CH-1 only (RCA Q JACK) for 600 ohm mic -60dBu, 3k ohm, unbalanced
AUDIO MONITOR; (RCA PIN) -5dBu, 47ohm, unbalanced LINE OUT; CH-1/CH-2 (RCA PIN) -10dBu, 47k ohm, unbalanced
50Hz to 12kHz at Normal audio, 20 Hz to 20kHz at HiFi audio
More than 43dB (at 3% distortion level), Normal audio
Digital frame memory (field, frame selectable, 8 bit depth/pixel)
Auto repeat playback between any two marked points
