Phoenix contact cm 90-ps-120AC/ 2X15DC/1 power supply n

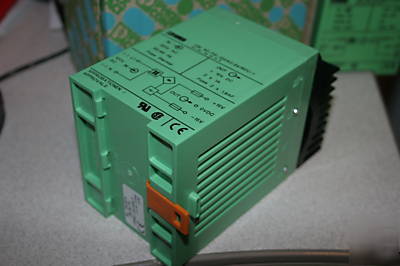

Phoenix Contact CM 90-PS-120AC/ 2X15DC/1 Power Supply
Power supply unit, common-mode, input 120 V AC, output 2 x 15 V DC/1 A
Nominal input voltage 120 V AC +6 % -10 %
Frequency range 50 Hz ... 60 Hz
Nominal power consumption Approx. 75 VA
Input fuse Thermal release fuse
Nominal output voltage 15 V DC 4%
Output fuse IEC 127-2/EN 60 127-2 (2 x)
Protective circuit/component Damping diode, varistor
Operating mode 100% operating factor
Test voltage input/output 4 kV AC
Ambient temperature (operation) 0 C ... 60 C
Installation position On horizontal DIN rail, venting slits above and below
Assembly instructions Can be aligned with spacing = 10 mm
Standards/regulations IEC 664/IEC 664A/DIN VDE 0110-1:1989-01
Standards/regulations DIN VDE 0551, UL 1012
http://media.digikey.com/pdf/Data%20Sheets/Phoenix%20Contact%20PDFs/2943819.pdf
